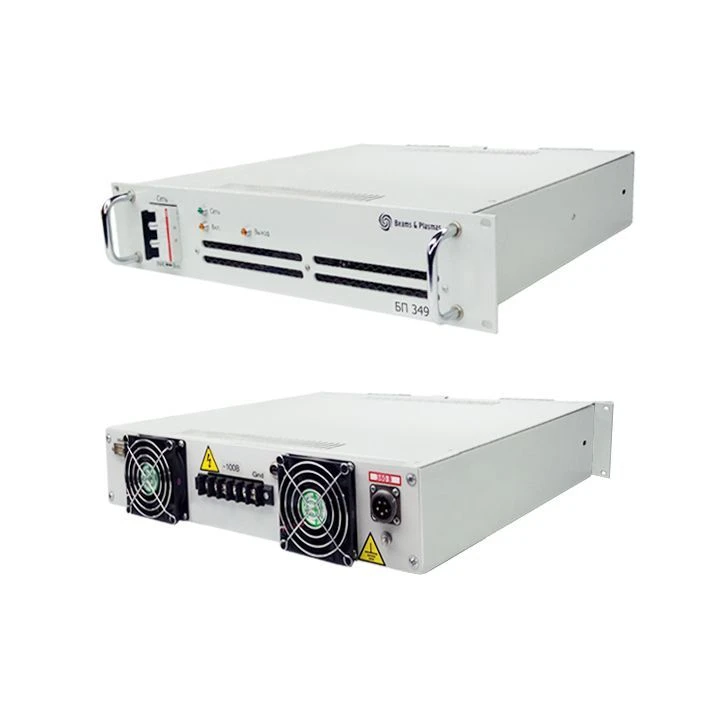

Offset Potential Power Supply 3.75 kW for Coating and Cleaning Applications

Electrical Interface Devices

Manufacturer: LVT+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The bias power supply unit is designed to supply a "bias potential" to the carousel with products during cleaning and coating processes. The power supply unit has negative polarity of the output voltage and provides supply of "bias potential" to the carousel in the mode: <ul> <li>- output voltage up to 4000 V, with current limitation.</li> </ul> The unit is equipped with: <ul> <li>- forced air cooling system at automatic switch-off</li> <li>RS-485 interface for communication with a computer</li> <li>Modbus RTU protocol control</li> <li>has two voltage ranges</li> </ul> *Operating Manual is available on request: LCMK.349.00.00.00.00-01 POWER SUPPLYING BLOCK OF SHIFT CAPACITY BP-349-01 It is allowed to deliver the unit as a part of the plant without packing. On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment

Supply of "displacement potential" to a carousel with products during cleaning and coating processes

Dustproof

Yes - The unit housing is made of metal and has no exposed live parts

Power supply voltage

380 V

Cooling

Air

Type of construction

Built-in

Front control panel

Warranty period

1 year

Climatic designs

GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Output voltage (adjustable)

100...4000 V

Output current maximum

0,25 A

Not output voltage stability, not more than

5 %

Power consumption, max.

1000 W

Maximum power

3,75 kW

Stabilization modes

current-limited voltage

Output voltage polarity

Negative

Interface

RS-485

Data transfer protocol

ModBus RTU

Overall dimensions, (length x width x height)

483x488x88 mm

Weight, not more

8 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
