Available for Import

Network Video Recorder Macroscop NVR-Spec-130 for IP Surveillance Systems

Wearable Video Systems

Manufacturer: MACROCOPE TRADE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

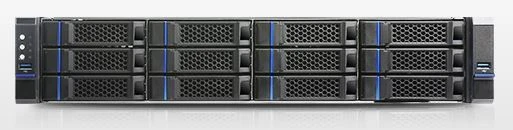

Network video recorder Macroscop NVR-Spec-130 is a hardware-software complex consisting of a server and pre-installed Macroscop software for use as part of IP-video surveillance systems. Guaranteed processing and recording of video and audio from 130 IP-cameras. Video stream format: MJPEG, MPEG-4, H.264, H.265, MxPEG.

Software motion detection. Support IP camera detectors. Support rotary IP-cameras.

Support IP camera audio channels. Pre-installed Windows operating system. SSD system media.

Number of places for installing hard discs for the archive up to 12. Housing height 2U for installation in 19 "rack.

Specifications

Number of IP cameras to be connected

130 pcs

Number of audio channels

130 pcs

Operating system

Windows

Motion detector

Software. support for IP camera detectors

Sabotage detector

Armoured glass

Detector of absence of masks

Armoured glass

Face detection

Armoured glass

Detector of left objects

Armoured glass

Tracking

Armoured glass

Search of objects

Armoured glass

IP camera resolution

Up to 12 Mpix

recording speed

No restrictions

Number of hard disk drive slots for the archive

B1/B8 2100/900 MHz pcs

System media

SSD

Number of monitors to be connected

1 pcs

Archive recording modes

constant, by operator's command, by camera motion detector, by program detector, by schedule (with possibility to combine recording modes), by system event (scenario).

Supported video stream formats

MJPEG, MPEG-4, H.264, H.265, MxPEG

Supported audio stream formats

PCM, G.711U, G.711A, G.722.1, G.726, G.729A, GSM-AMR, AAC

Supported standards

ONVIF, PSIA

Display Mode

Multiscreen - channel grid and mutual arrangement of channels in the grid can be changed during operation

Support for "alarm monitor"

Armoured glass

Supports two streams from IP cameras

Armoured glass

PTZ camera control

Armoured glass

Ethernet controller

2x10/100/1000 Mbps

Installation method

desktop or 19" rack mount

Temperature range

+10°C ... +40°C

Dimensions (W x H x D)

658.6 x 438.0 x 87.0 mm

Nutrition

220-240 V, 50-60 Hz

Country of origin

Russia

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
