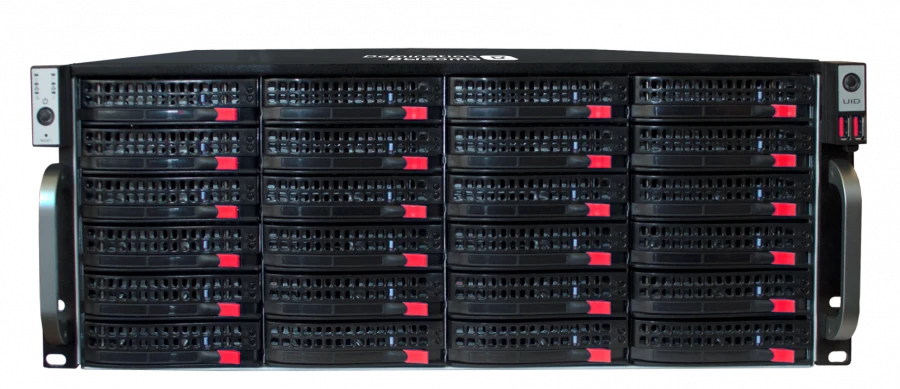

Network IP Video Server VS SOT HEIGHT-64-24 for High-Quality Surveillance

Wearable Video Systems

Manufacturer: VIPAKS+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Domination Video Server HIGH IP-XE-24-HSR Domination Video Server HIGH IP-64E-24-HSR Domination Video Server HIGH IP-48E-24-HSR Domination Video Server HIGH IP-32E-24-HSR

Description

Network IP-video server is designed to connect IP-cameras (with any resolution) of any manufacturer from the list of integrated. Supported video format H.265, H.264, MJPEG (via HTTP). Supplied with pre-installed OS Astra Linux Special Edition and professional Russian software for video surveillance.

Incoming stream up to 1600 Mbit/sec. 4 network boards. Support for audio channels of IP-cameras.

Support for rotating IP-cameras. Hot-swap hard drives. Power supply with power redundancy.

Supplied complete with hard discs, keyboard, mouse, monitor. <ul> <li>- Number of built-in HDDs - 24 pcs., the volume of each 6 TB.</li> <li>Total archive volume - 144 TB</li> <li>Video recording storage time - up to 30 days</li> <li>Number of connected cameras - 64, licence included, more than 10000 camera models from the list of integrated cameras are supported.</li> </ul>.

Specifications

Number of licenses for connecting IP cameras

24 pcs

Operating system

OS Astra Linux Special Edition

Motion detector

Support for built-in IP camera detectors

Maximum recording speed per channel

No restrictions

Recording modes

Continuous, by motion, by schedule, manually by operator, by contact closure/opening, by signal loss (recording duration without limitation), by video analytics events, event stream recording, audio recording.

Archive Mirroring

Armoured glass

Resolution per channel pixels

No restrictions

Supported HDD capacity

1...18

Maximum incoming flow Mbps

1600

Maximum outgoing flow Mbps

1600

Built-in network card

4 x LAN 10/100/1000 Mbps

Protocol/standard for connecting to IP cameras

HTTP, RTSP, ONVIF

Video output

VGA and/or HDMI

Power supply voltage

AC220 - 240V, 50Hz

Maximum power consumption

500

Temperature mode

5...40 °C

Country of origin

Russia

Size WxHxH (mm)

444 x 420 x 90

Number of HDD bays pcs.

24 pcs

HDD baskets with hot-swap function

Armoured glass

Redundant power supply unit

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
