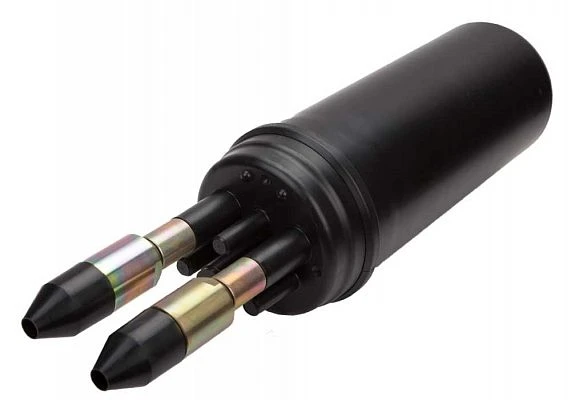

MTOC-A Classic Underground Fiber Optic Cable Joint Available for Import

MTOC-A Classic Underground Fiber Optic Cable Joint for Reliable Connections

Cable Accessories
Manufacturer: SSD OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Toupee classical coupling MTOC-A is designed for installation of any underground optical cable laid in soils of all categories, as well as underwater OC laid through rivers, lakes and swamps. This is achieved through the use of special cable glands, each of which in turn covers a certain group of cables. The method of sealing of the body with the headband is carried out with the help of heat shrinkable tubes TUT. Re-opening and subsequent sealing is also carried out with the help of TUT.

Specifications

Type or grade of material
Armlen
Equipment
Casing,Cassette,KDZS sleeves, KDZS laying tweezers, Inlet set No.8, Set of markers and ties, Silica gel.
Designation
MTOK-A
Type
Dead end
Profile
Cylindrical
Surface protection coating
Heat shrink tubing
Diameter
159 mm
Weight
4 kg
Operating temperature
-60...70 °C
Resistance to mechanical influences
Single impact not less than 10 Joules
Length
59.7 cm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
