MSP-3 Positioning System Module for Remote Data Transmission in Mining

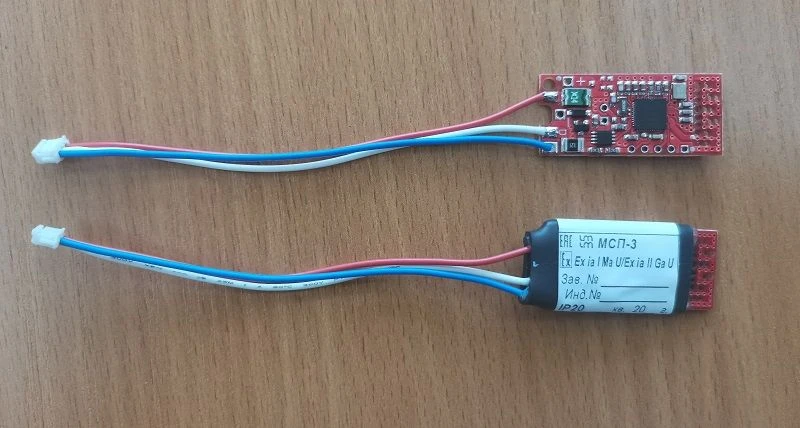

Module of positioning system MSP-3 is an Ex-component and is designed for remote data transmission between wearable mine devices via Bluetooth wireless interface (Bluetooth software is installed at the factory). Structurally, the modules consist of an electronic board covered with a heat-shrinkable tube with an adhesive sublayer covering all components and printed conductors. For connection of external intrinsically safe circuits in the module three wires with connected socket type ZHR-3 (power and control circuits).
