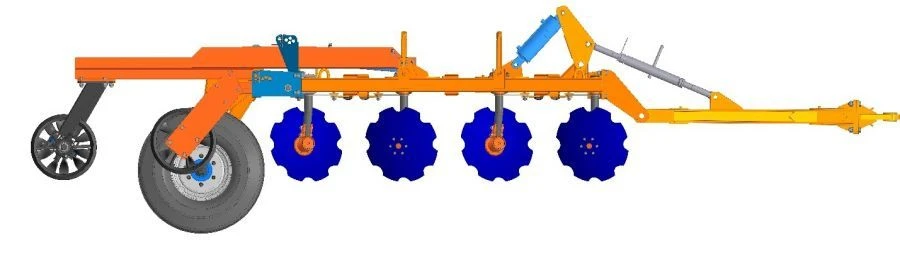

Modular Disc Harrow BDM-6x4PM for Effective Soil Preparation

Disc Harrows

Manufacturer: BELAGROMASH-SERVICE IM. V.M.RYAZANOVA OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The semi-trailed modular disc harrow is designed for traditional, minimum basic and pre-sowing tillage for cereals, industrial and forage crops, refreshing of sodden meadows and stubble husking. In one pass the harrow loosens the soil, crushes and incorporates plant residues of the predecessor and weeds, as well as fertilisers applied to the soil. The use of a levelling roller in the harrow design levels the soil and protects it from moisture evaporation.

Specifications

Type of product according to PP RF 616

Disc harrows

Distance between rows

700 mm

Weight

3635 kg

Working width

5.6 m

Number of implement rows

4 pcs

Material of working elements

Steel 30MnB5

Material of frame structures

09G2S steel

Harrow type

semi-trailer

Height

1740 mm

Width

6360 mm

Length

6170 mm

Operating speed

10...12

Capacity per hour

5.6

Number of working orans

56 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
