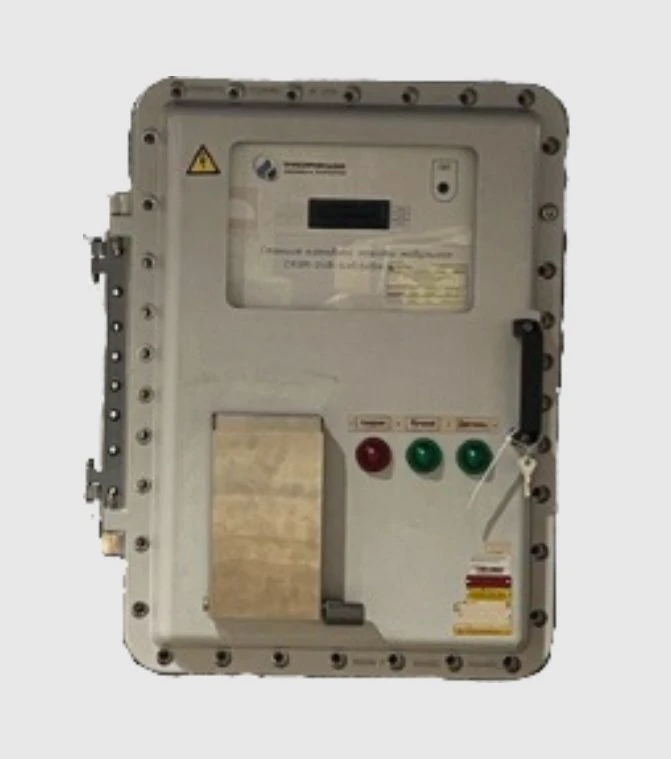

Modular Cathodic Protection Station SKZM for Effective Pipeline Safety

Static Power Converters

Manufacturer: PIPE SYSTEMS AND TECHNOLOGIES OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

SKZM is designed for use as part of cathodic protection systems for setting (setting) and maintaining the protective current and/or protective potential on the protected pipelines and structures. It is an AC to DC voltage converter with output voltage or current stabilisation functions and contains one to four 1.25 kW or 0.6 kW power modules or one to eight 0.3 kW modules and a control module. SCZM provides information exchange with the external system via RS-485 serial interface via ModBus RTU protocol (wired, FOCL) and/or via GSM/GPRS communication channel.

Specifications

Rated output power

0.3...1.2 kW

Output power of power module

0.3 kW

Rated output voltage

96 V

Rated supply voltage of AC mains (single-phase, frequency 50±1 Hz)

230 V
