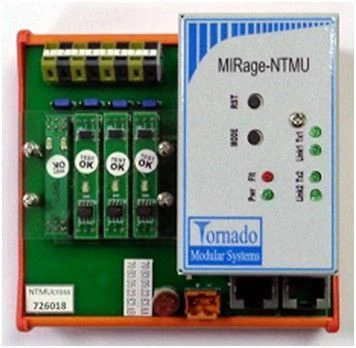

MIRage-NTMU Timer Processing Device for Measuring Signal Characteristics

The MIRage-NTMU timer processing devices are designed to measure the time characteristics of a periodic pulse signal and generate a pulse sequence with variable pulse repetition rate at a given rate of change of pulse repetition rate. The number of measuring channels (IR) of periods is 3, the number of IR of pulse generation is 1. Data exchange is carried out via redundant Ethernet interface via UDP protocol. When configuring and controlling the operating modes of the device, the ModBus protocol add-on is used, and the transmission of the flow of measured period values takes place in direct RAW mode without requests. MIRage-NTMU devices are designed to create automated process control systems (APCS) in various industries. The MIRage-NTMU devices use the central processor K1986BE92QI manufactured in the Russian Federation.
