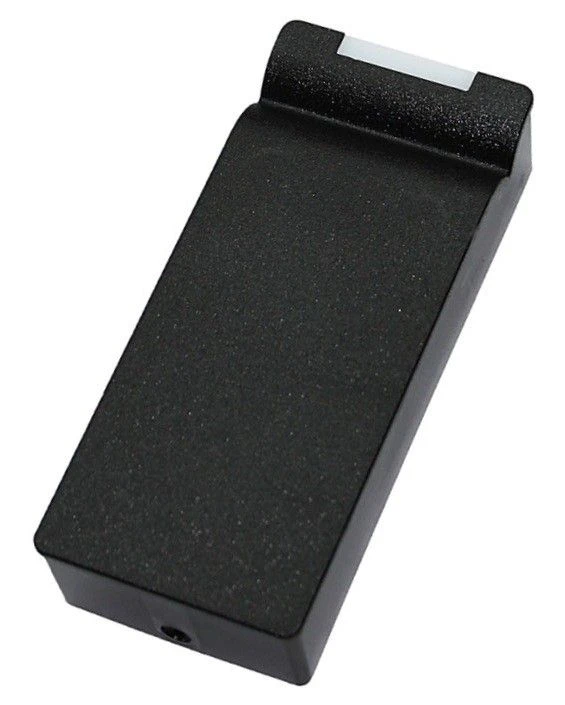

Matrix-VI Contactless Card Reader (Model NFC K Net) for Access Control Systems

Security and Fire Control Panels

Manufacturer: ABC LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The Matrix-VI reader (mod. NFC K Net) is designed for use in access control and management systems (ACS) and is a reader of contactless cards of the Mifare family and other cards supporting the ISO-14443A standard, and a controller in one housing. The device can be configured and operated both autonomously and in network mode under the control of an external programme via RS-485 interface. The device can operate in three modes: ACS controller, reader or configuration mode. In the controller mode, the built-in controller controls external terminals, light and sound indication, as well as RS-485 interface. The following equipment can be connected to the terminals of the device in this mode: -contactless card reader operating via iButton or Wiegand protocols, including the same device in reader mode; -electromagnetic or electromechanical lock or electric latch; -button for unblocking the passage without a card; -position sensor...

Specifications

Operating frequency

13.56

Type of identifiers used

Mifare (Classic, Plus, Ultralight)

Card/fob reading range

6 cm

Possibility to write information to the identifier memory

availability

Key memory

8168 pcs

Event Memory

8192 pcs

Maximum number of controllers in the network

255 pcs

RS-485 network communication speed (set automatically)

-57600

Light and sound indication of operation and programming modes

availability

Setting the duration of lock opening

0.1 sec to 25.5 sec (factory set to 3 sec)

Output for lock connection

TIR transistor

DC supply voltage

8...27 V

Consumption current (at 12V)

180 mA

Switching current

5 A

Housing material

ABS plastic

Overall dimensions

109x47x23 mm

Ambient temperature

-40°C to +50°C

Class of containment

IP65

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
