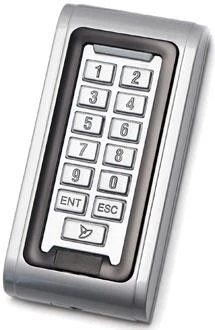

Matrix-IV Access Control Reader (Model E HT Metal Keys)

Available for Import

Matrix-IV Access Control Reader for Secure Identification and Access Control

Security and Fire Control Panels

Manufacturer: ABC LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The Matrix-IV reader (mod. E HT Metal Keys) is designed for use in access control and management systems (ACS) for reading identification codes of identifiers (proximity-cards, fobs, etc.) of EM-Marine and HID standards.etc.) standards EM-Marine, HID (Prox Card II) or Atmel 5557 (Temic), as well as for entering identification codes from the reader keyboard, and transfer the read code to the controller via iButton (Dallas Touch Memory) or Wiegand-26(42) protocols. The reader distinguishes between original contactless cards and their clones (copies), which allows the reader to implement the "Anti-Clone" mode, in which the transfer of identification codes of cloned cards is prohibited.

Specifications

Operating frequency

125

Type of identifiers used

EM-Marine, HID ProxCardII® and Atmel 5557(Temic)

Read range of EM-Marine, Atmel 5557(Temic) cards/fobs

5 cm

Read range of HID ProxCardII® standard cards/fobs

3 cm

Output protocol

iButton (Dallas Touch Memory), Wiegand-26(42)

Remoteness of the reader from the controller via iButton protocol (Dallas Touch Memory)

15 cm

Remoteness of the reader from the controller via Wiegand protocol

100 m

DC supply voltage

B1/B8 2100/900 MHz V

Maximum current consumption

150 mA

Maximum load current of bell output

1.3 A

Operation mode indication

light, sound

External light and sound control

availability

Housing material

Silumin, plastic

Overall dimensions

120x58x20 mm

Weight

500 year

Ambient temperature

-40°C to +50°C

Class of containment

IP65

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
