Manual Winch RL-500/125 Version 1 Available for Import

Manual Winch RL-500/125 - Efficient Lifting and Moving Equipment

Diverse Winches
Manufacturer: AVITEK OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Manual winch RL-500/125 version 5 Manual winch RL-500/125 version 2 Manual winch RL-500/125 version 4 Manual winch RL-500/125 version 3

Description

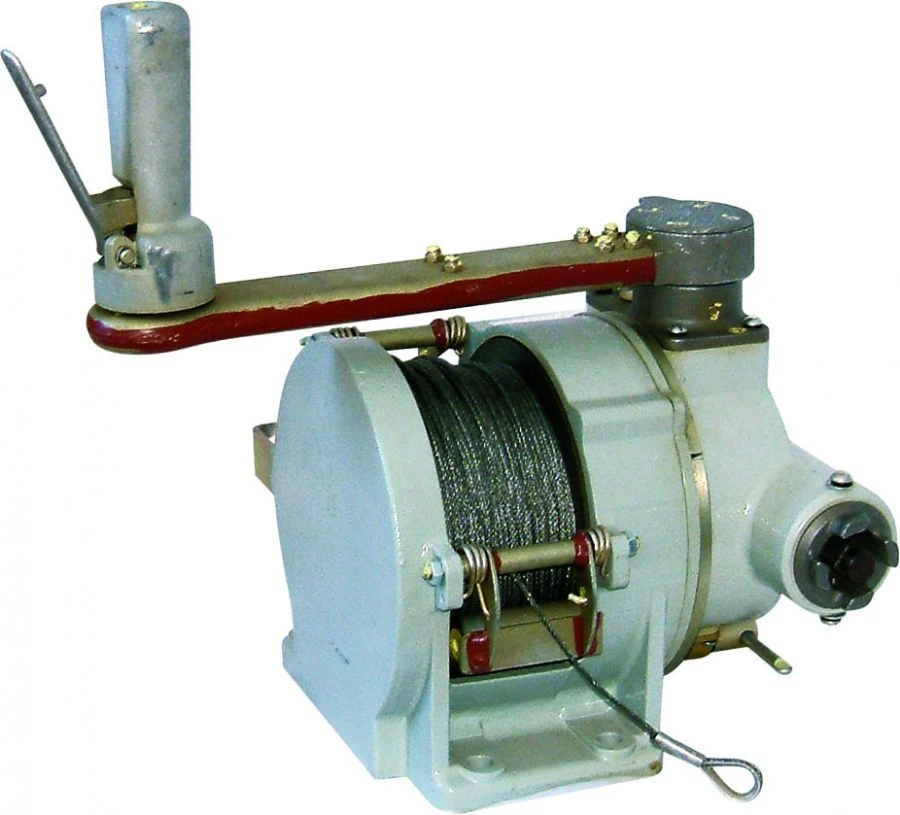

Manual winch RL-500/125 version 1 is designed for lifting, lowering and moving loads. The winch consists of an aluminium housing with places for fixing the winch to the supporting surface, a drum with a rope, a gearbox, a ratchet mechanism and a manual drive handle with a stopper to control the winch drive. The gearbox consists of one pair of bevel gears and two pairs of spur gears. The rotary motion of the handle on the shank of the winch is transmitted through the gearbox to the drum for releasing or retracting the rope. For carrying the winch on the body there is a transport handle.

Specifications

Type
manual
Name
winch
Designation
RL-500/125 version 1
Rope length
15 m
Number of transmissions
2
Maximum force on the manual drive handle when lifting/lowering the load
68.6...176.4
Operating temperature range
-60 to +40 °C
Overall dimensions
231x246x226 mm
Weight
16 kg
Rope termination
hook
Rope diameter
5 mm
Load capacity, not more
500 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
