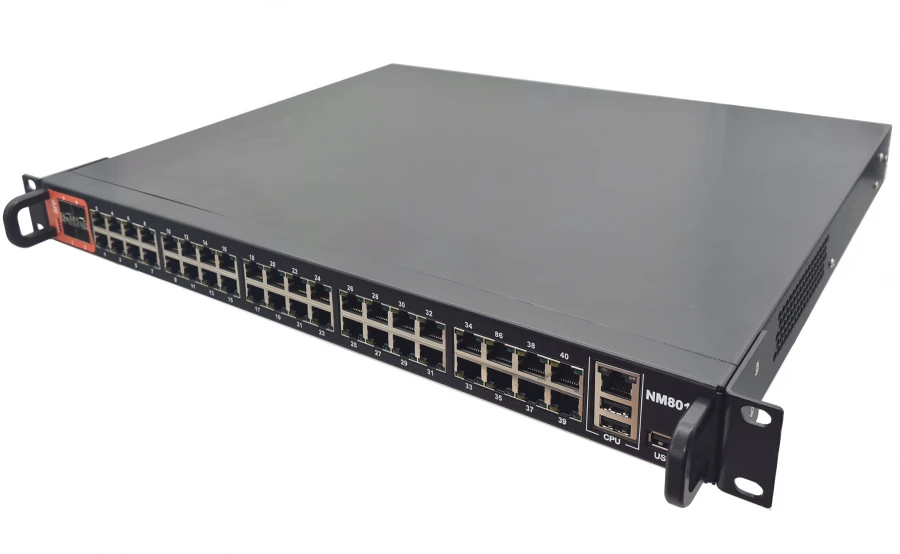

Managed Industrial Ethernet Switch 19" Rackmount NM801 for Effective Device Networking

Switching Communication Systems

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

NM801 is a managed Ethernet switch designed to combine into a single information network of devices, complexes and various systems with the help of information transmission channels through a physical medium such as optical fibre and copper cable, as well as to create a single multi-service, fault-tolerant industrial data network, providing interconnection and operation of complex automation systems of technological processes of industrial facilities.
The product is equipped with 10/100/1000Base-T ports for twisted pair connection and 10Gbase-X SFP ports, allowing to connect to networks with copper and optical communication lines.

Specifications

GbE interface

40 GbE ports, brought to the front panel

XGbE interface

4 SFP+ ports with up to 10Gb transceivers; Support 1000BASE-BX, 1000BASE-LX, 1000BASE-XD, 1000BASE-ZX, etc.

USB interface

USB2.0 Type A port for connecting external storage device; USB2.0 Type B port for connecting external computer (console, CLI)

Control interface

ICLI command line interface

Support for network standards

IEEE 802.3, 802.3i, 802.3u, 802.3z, 802.3ab

Protocol support

IPv4/IPv6; SNMP; LLDP; Port Mirror; DHCP Server; TFTP; Telnet; Syslog; Flow Control; VLAN (IEEE 802.1Q standard); IGMP; STP, RSTP; HTTPS, SSL, SSH; NTP Client, PTP

Supports IEEE 802.3ad link aggregation

Armoured glass

Support for QoS mechanisms

Armoured glass

Port Mirroring Support (Port Mirroring)

Armoured glass

Support for redundant ring topology construction

Armoured glass

LLDP, LACP support

Armoured glass

ERPS G.8032 protocol support

Armoured glass

MAC address table size

32K

Switching matrix bandwidth

80 Gbit/s

Buffer memory capacity

32 Mbytes/sec.

Support according to 802.1Q

Up to 4K active VLANs

Type of architecture

Open

Nutrition

from 220 V AC (version NM801-01, NM801-03); from 36 V DC to 72 V DC (version NM801-02, NM801-04)

Power consumption

Not more than 300 W

Mounting

Into a 19" rack.

Indication

PWR1 power availability; PWR2 power availability; Ethernet 1000Base-BX interface indicators; Ethernet 1000Base-T interface indicators

Buttons

Reset button with functions: - hardware reset, -software reset

Resistance to mechanical influences

sinusoidal vibration from 10 Hz to 500 Hz; single shocks 50 g; multiple shocks 25 g

Degree of protection

IP30

Operating temperature

minus 40 °C to plus 55 °C

Weight

No more than 5 kg

Overall dimensions, not more

483.0 × 419.5 × 44.1 mm

Special features

Ability to deliver products with COM-express Type 6 module installed; supported COM-express modules: CPC1304 (Intel), CPC1309 (Baikal-M), CPC1307 (Elbrus-2C3)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
