Main earthing bar GZSH.10-430.450.12M8-ML Available for Import

Main earthing bar GZSH.10-430.450.12M8-ML

Electrical Circuit Devices
Manufacturer: ELMASHPOM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Main Grounding Busbar GZSH.10-430.570.16M8-ML Main earthing bar GZSh.10-430.690.20M8-ML Main earthing bar GZSH.10-430.390.10M8-ML Main grounding busbar GZSH.10-430.390.10M8-M Main earthing bar GZSH.10-430.690.20M8-M

Description

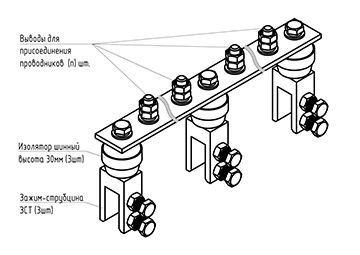

Main earthing busbar, tinned copper 450 x 30 x 4 mm with 12 M8 pins, on insulators 30 mm high for fastening to metal structures with thickness from 3-9 mm with the help of a clamp-pin. Busbar, which is part of the earthing device of the electrical installation up to 1 kV and is designed to connect several conductors for the purpose of earthing and equipotential bonding

Specifications

Size
104-30-450 mm
Weight
1.1 kg
Material
Bus material - tinned copper
Material
insulator material - polymer
Material
Material of the clamp-pliers - hot-dip galvanized steel according to GOST 9.307-2021
Type
main ground busbar
