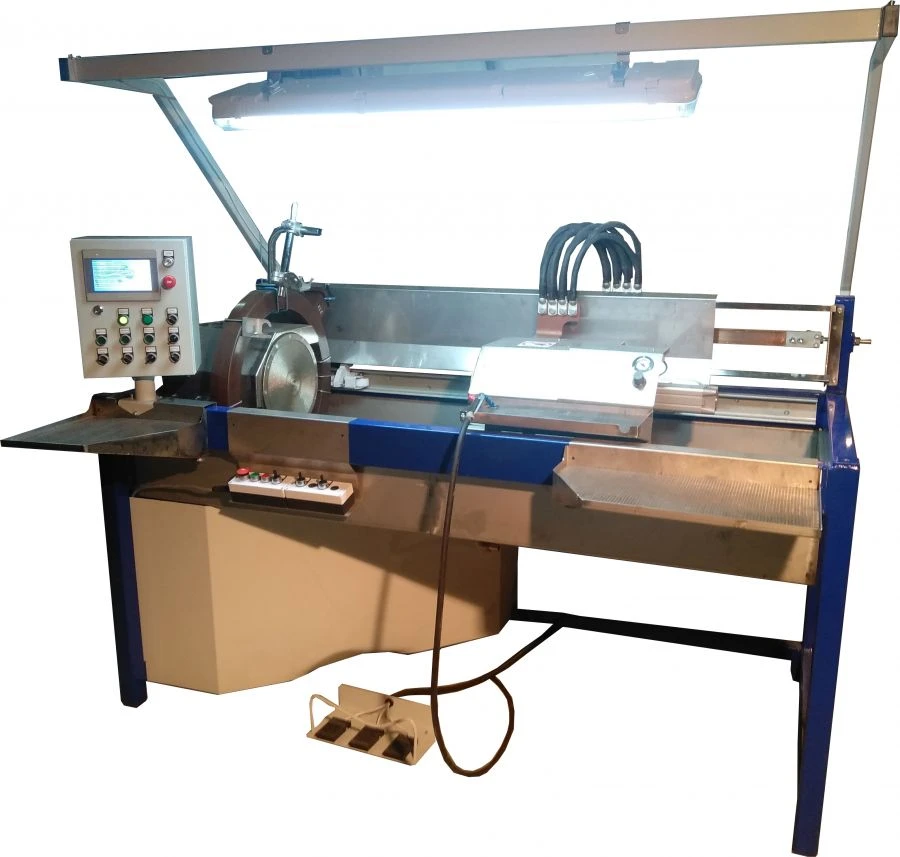

Magnetic powder flaw detector MAGNITEST-U 2500

Magnitepowder flaw detector MAGNITEST-U 2500 provides detection of longitudinal and transverse defects with minimum dimensions (in accordance with GOST R 56512-2015): opening 0.0001 mm, depth 0.01 mm, length 0.5 mm, as well as larger ones. In accordance with GOST 21105-87 sensitivity classes "A", "B", "C" are provided. Advantages:

• - automation of control operations;
• design of contact plates excluding "burns";
• input of currents up to 12 kA during part rotation;
• library of parameters of product control;
• simultaneous magnetisation and inspection of the clamped part;
• automatic maintenance of the circular magnetising current value;
• parameter setting and display on a touch screen with intuitive interface;
• smooth adjustment of the magnetising currents;
• magnetising current measurement system RSI;
• slurry splash protection system;
• white light or ultraviolet illumination;
• placement of a blackout system on the installation, if necessary.
