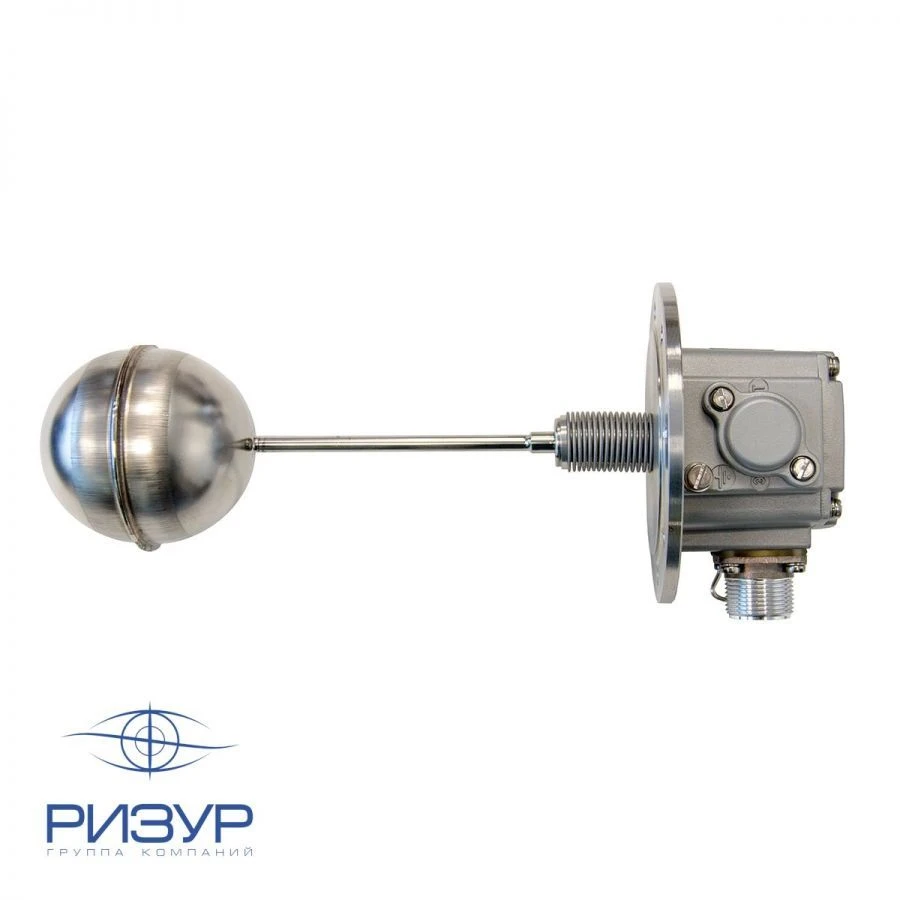

Liquid Level Sensor Relay RIZUR DRU-1PM for Water and Fuel Control

RIZUR DRU-1PM series liquid level sensor is designed to control the level of water, diesel fuel, oil, as well as other liquids. Relay sensor RIZUR DRU-1PM is used in automation devices, automatic control systems, regulation and control of technological processes in many industries. The device converts into an output signal (of the "dry contact" type) the achievement by the controlled medium of the control point.

The sensor-relay RIZUR DRU-1PM is installed horizontally on systems and vessels. Relay sensors are non-self-flammable, do not support and do not cause combustion. Sensor-relay RIZUR DRU-1PM is a monoblock design and consists of a housing (with covers), which is attached to the plug connector, inside the housing are located microswitch, float, flange and bellows, welded to the flange, locking device, which provides fixation of the float during transport %; to seal the housing with covers and flange, as well as the connection of ra...
