Linear LED Light Fixture TLGP Series for Office and Retail Applications

LED Ceiling & Wall Lights

Manufacturer: RECORD AETZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

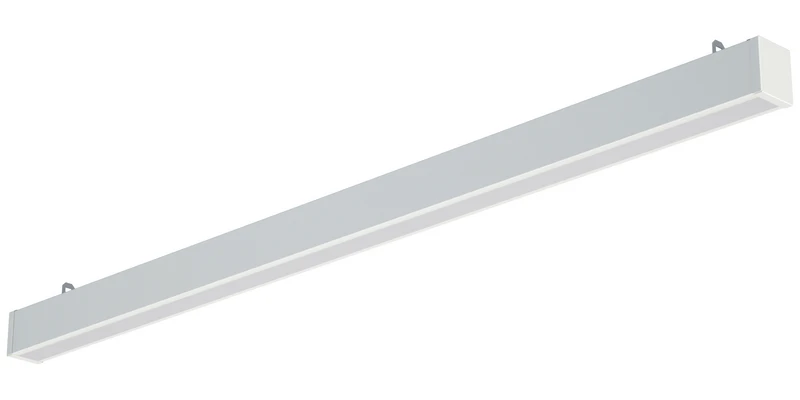

LED linear luminaire DSO/DPO for suspended/overhead mounting. Designed for use in offices, administrative buildings, sales halls, shops, educational institutions, health care facilities. The body is made of white polymer-coated sheet steel or aluminium profile.

The diffuser is a polymer lighting sheet "opal" (OL). Light source - LEDs with colour temperature 3000/4000/5000 K and colour rendering index Ra>80 or Ra>90. Power supply - driver, meets all requirements of current standards, cos?

>=0,98, illumination ripple factor < 1%. The luminaire can be equipped with an emergency power supply unit (additional designation EM) for 1 hour or 3 hours.

Specifications

Protection class against electric shock

Grade I

Type of lamps (LED, incandescent, fluorescent)

LED

Type of supply current

Variable

Degree of protection (IP)

IP42

Power factor

0.85...0.95

Upper operating temperature value

40 °C

IK code

Type of emergency luminaire

constant action

Light distribution class

Type of luminaire

Suspended

Color temperature (K)

5000 K

Weight

1.5...2.5 kg

Optical element material

Light sheet

Climatic execution (according to GOST 15150-69)

UHL4

Type of diffuser

Opal

Color rendering index (CRI)

Flat grinder, Specialised grinder

Mounting type

surface mounted/suspended

Housing material

?????/????????

Width

SBVVBG mm

Length

500...1500 mm

Luminous flux, lm

1200...4000 lm

Height

60 mm

Power consumption, W

12...38 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
