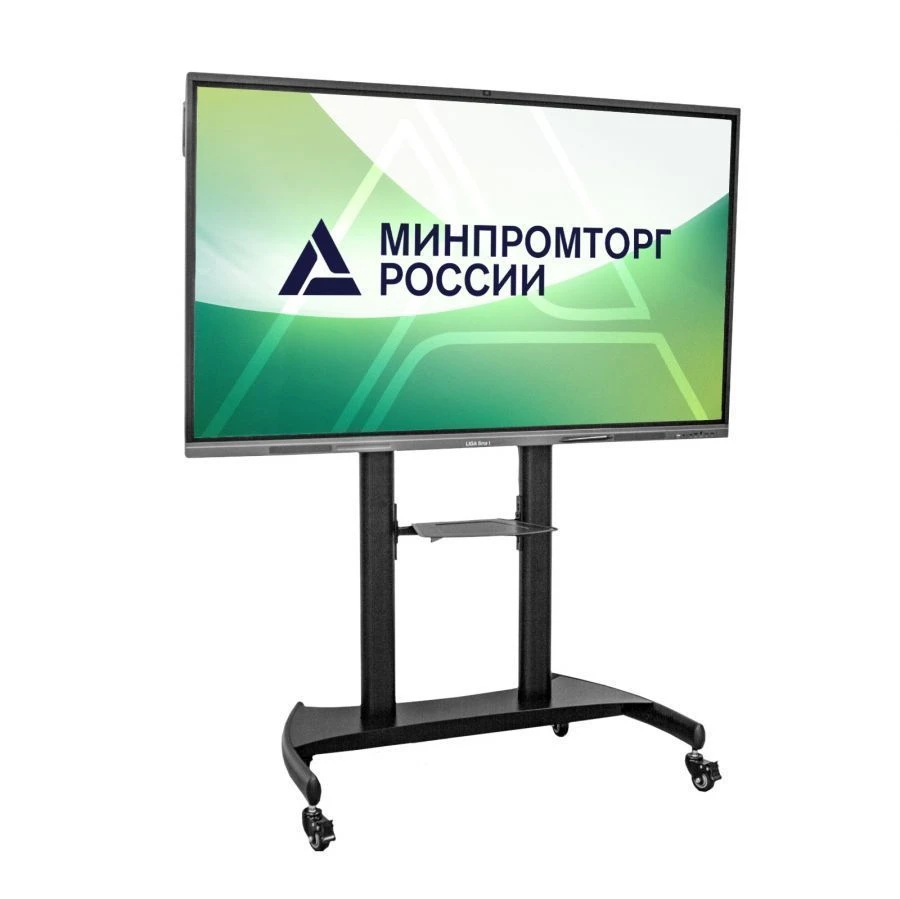

LigaSmart Interactive Panel with Touch Display for Educational Use
Manufacturer:
LIGA LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The LigaSmart IP interactive panel combines a touchscreen display used as an input/output mechanism. All electronic units are located in one housing, an additional computing unit can be installed. The interactive panel is used in budget and commercial organisations for conducting lessons, lectures, conferences, meetings, seminars, trainings, exhibitions, etc.
Design: floor and/or wall mounted. The GISP Catalogue contains the characteristics of interactive panels corresponding to KTRU, as well as other basic and optional characteristics. The interactive panel may include other additional devices not specified in the GISP Catalogue.
Dimensions, weight, colour, completeness, number of external connectors (ports) for peripheral devices, other characteristics of the product - according to the technical specification, in agreement with the Customer. Availability of certificate of conformity/declaration of conformity to technical regulations: ?? ??
004/2011; ?? ?? 020/2011; ??
???? 037/2016.
Specifications
DDR RAM version of the auxiliary computing unit
? 4
Number of HDMI outputs of additional computing unit, pcs.
?1
Number of USB 2.0 ports of the additional computing unit, pcs
?1
Number of USB 3.0 and higher ports of the additional computing unit, pcs
?1
Maximum supported storage capacity of the additional computing unit, Gbytes
? 512
Maximum supported RAM capacity of the additional computing unit
64
RAM frequency of the additional computing unit
? 2133
Availability of a slot on the housing for installation of an additional computing unit
Yes (optional)
Availability of stylus storage trays
Yes (optional)
Remote magnification of a specific area of the screen
Yes (optional)
Availability of built-in camera
Yes (optional)
Availability of built-in microphone
Yes (optional)
Number of built-in Ethernet ports for connection of additional devices, pcs
?1
Number of USB 3.0 ports, pcs
?1
Number of free USB Type A ports on the front panel, pcs
?1
Number of HDMI inputs on the front panel for connection of external devices, pcs.
?1
Number of audio outputs, pcs
?1
Wired Ethernet connectivity
Armoured glass
Ability to connect to Ethernet wirelessly (Wi-Fi)
Armoured glass
Availability of connectors for connecting external devices
Armoured glass
Attachment included
Yes (optional)
Ability to use the palm of your hand as an erasing tool
Armoured glass
Type of stylus for working with the panel
Battery-less
Number of styluses in the delivery set, pcs
? 1
Type of sensor technology
infrared / capacitive (optional)
Availability of a built-in speaker system
Armoured glass
Touch sensor response time, ms
? 10
Static screen contrast
?1200:1/?1400:1
Screen brightness, cd/m2
? 350/? 450/? 500
RAM capacity of the embedded computing unit, Gbyte
8/16/32/64
Storage capacity of the embedded computing unit, Gbytes
128/256/512/1024
Availability of SSD
Armoured glass
Availability of built-in computing unit
Armoured glass
Operating conditions
Indoors
Panel weight, kg
? 60 and < 70 (according to the Specifications, dimensions and equipment, the weight of the product may have a value in the following range: < 50 / ? 50 and < 60 / ? 70 and < 80 / ? 80)
Panel height, mm
? 1100 and < 1200 (according to the Technical Specifications, the height of the product can have a value in the range: < 1000/ ? 1000 and < 1100 / ? 1200 and < 1300/ ? 1300).
Panel width, mm
? 1750 (according to the Technical Specifications, the product width can also have a value in the range: < 1500 / ? 1500 and < 1550/ ? 1550 and < 1600/ ? 1600 and < 1650/ ? 1700 and < 1750).
Panel thickness (depth), mm
? 100 and < 110 (according to the Technical Specifications, the thickness of the product may also have a value in the range < 100/ ? 110 and < 120/ ? 120 and < 130/ ? 130)
Number of megapixels on the screen, Mpixel
?2
Number of touch points, pcs
?20
Horizontal screen resolution, pixel
3840
Screen vertical resolution, pixel
2160
Diagonal size, inch
86 (Technical specifications also allow manufacturing of interactive panels with diagonal 32, 43, 55, 65, 75)
Fanless cooling
Armoured glass
Number of line level audio inputs, pcs.
?1 (optional)
Number of microphone level audio inputs, pcs.
?1
Tempered safety glass
Armoured glass
Supports 3840x2160 pixel resolution (at 60 Hz)
Armoured glass
Illumination type
Straight LED/Lateral LED (optional)
Ability to ignore palm taps on the screen
Armoured glass
Remote power-on capability
Yes (optional)
Remote control and monitoring via Ethernet
Armoured glass
Remote control and monitoring via RS-232
Armoured glass
Screen matrix response time (gray to gray), ms
? 10
Built-in touch object recognition functions
Yes (optional)
Sensor sensing height from the screen surface, mm
? 3
Number of supported styluses simultaneously, pcs
? 2
Number of free USB 2.0 Type A ports, pcs
?1
Anti-reflective safety glass
Armoured glass
Integrated light sensor for automatic backlight brightness correction
Armoured glass
Remote control included
Armoured glass
Automatic sleep function in case of overheating
Armoured glass
Wireless image transfer from Windows, MacOS, iOS, ChromeOS, Android devices
Armoured glass
Availability of double spelling function
Armoured glass
Touch sensor resolution, mm
? 2
Compatibility
Windows / ChromeOS / Android / MacOS / Linux (optional)
Stylus attachment method
Magnetic (on panel) / in tray (optional)
Number of storage slots
2 pcs
Number of RAM slots
2 pcs
Maximum RAM capacity of the embedded computing unit
64
Availability of an additional computing unit
Optional
Functionality
Availability of tools for drawing geometric shapes and lines, Recognizing shapes and handwritten text, Creating inscriptions on running applications, Availability of random number generator, Availability of calculator, Availability of on-screen keyboard, A
Type of product according to PP RF 616
Computational electronic digital machines containing in a single housing a central processing unit and an input and output device, combined or not, for automatic data processing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
