Available for Import

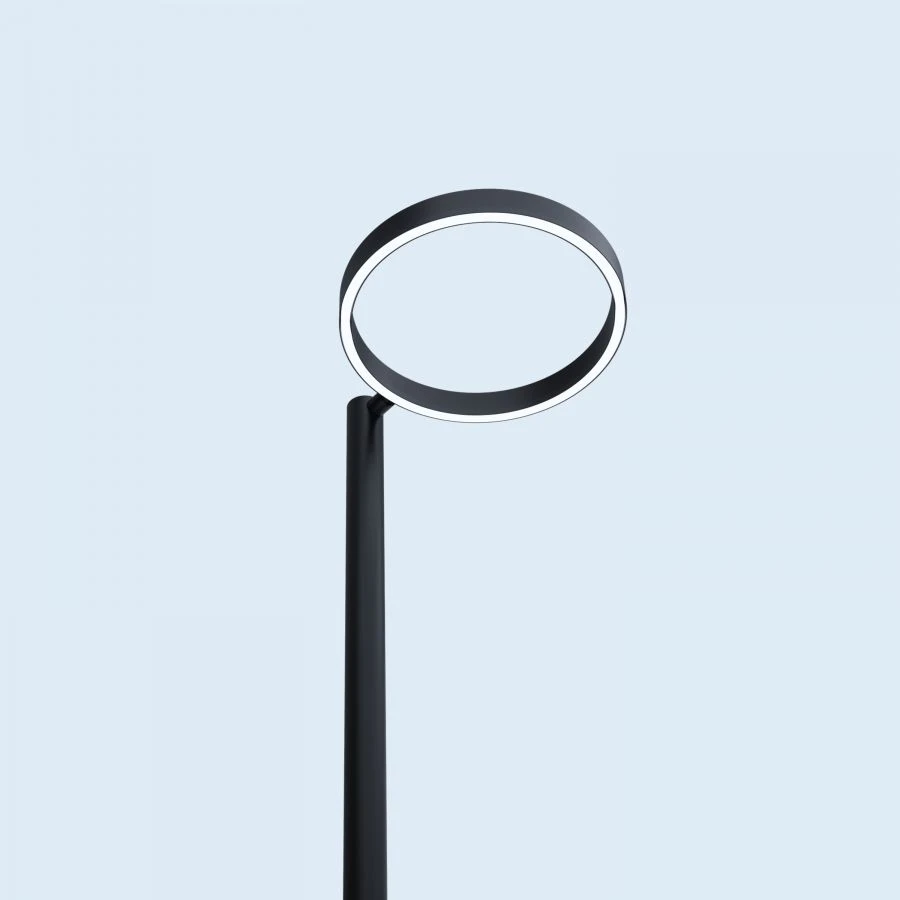

LED Street Ring Light LV-RING D700 for Outdoor Illumination

LED Lighting Fixtures

Manufacturer: LEDVIZOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

It is a street ring luminaire mounted on a support. Frosted diffuser eliminates the glare effect. The luminaire is responsible for general illumination of the territory of public spaces. Thanks to its design it fits perfectly into the architecture of modern residential complexes and business centres, into the atmosphere of city parks and squares.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Light output, lm/W, not less than

Degree of protection (IP)

IP66

Type by installation location

street, fixed, on support

Climatic version

UHL1

Pulsation factor

5 %

Luminous flux, lm

1080 lm

Upper operating temperature value

45 °C

Power consumption

28 W

Housing material

polymer-coated steel

Height

85 mm

Width

704 mm

Length

884 mm

Net weight

10.5 kg

Lower operating temperature value

-40 °C

Protection class against electric current

Correlating color temperature (CCT)

2700...6500 K

Power factor

0.95

Rated supply voltage

230 V

Type of supply current

Variable

Designated service life

B1/B8 2100/900 MHz year

Warranty period of operation

5 year

Color rendering index (CRI), not less than

Type of conditional light intensity curve in the equatorial plane

circularly symmetrical/axial/lateral/asymmetrical

Type of light intensity curve in characteristic meridional planes

L/S.

Light distribution class

Mains frequency

SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
