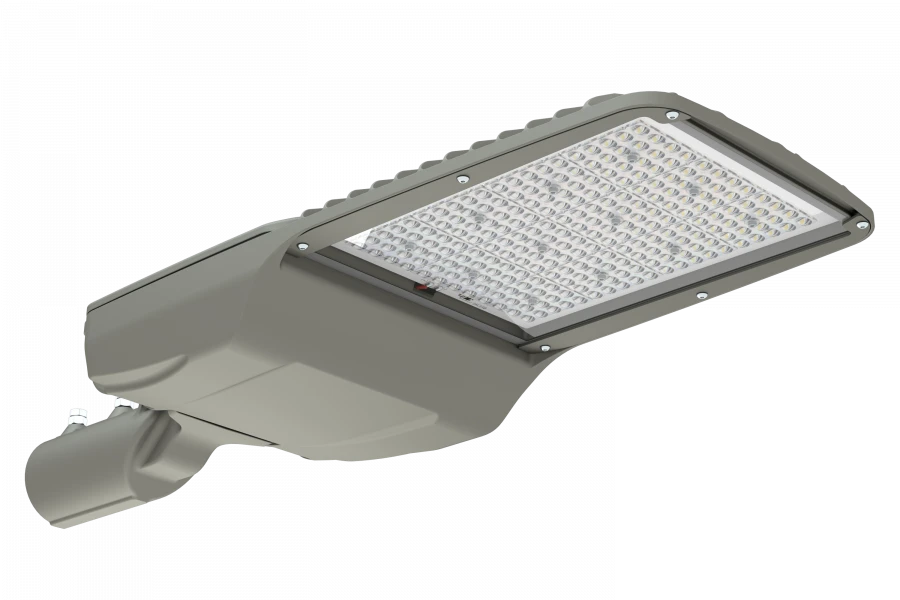

LED luminaire Energocheck PS-1-81-09940 B2B Supply

LED Lighting Fixtures

Manufacturer: PROM-SVET LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

High-Efficiency LED Street Light Energocheck PS-1-81-09900 LED luminaire Energocheck PS-1-81-09800 LED luminaire Energocheck PS-1-81-09840 LED luminaire Energocheck PS-1-81-09920 LED luminaire Energocheck PS-1-81-09950

LED luminaire Energocheck PS-1-81-09960 LED luminaire Energocheck PS-1-81-09850 LED luminaire Energocheck PS-1-81-09880

Description

Highly efficient LED luminaire for lighting streets, residential areas, infrastructure and industrial facilities. Housing made of die-cast aluminium with powder coating. Tool-free access to the switching compartment with hot-swappable driver.

Mounting on a cantilever bracket or on a ø40-60 mm floor lamp support. Tilt angle adjustment ±20° in 5° increments. Tempered glass diffuser.

Driver with protection against high energy microsecond pulses (up to 15 kV). Compatible with various ASUNOs (NEMA or Zhaga connectors; PLC). Power circuit knife connector for de-energising the luminaire when the lid is opened.

High degree of protection against dust and moisture (IP66). Operating temperature -60...+50 °C. Supply voltage range 108...305 V.

Power 60 W. Wide lateral light intensity curve (140×50° or 155×70°). Colour rendering index 70, 80.

Colour temperature 2700, 3000, 4000, 5000 K..

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Power

60 W

Type of supply current

Upper operating value. Temperatures

SBVVBG °C

Lower operating temperature value

-60 °C

Power supply voltage

100...305 V

Power factor (Pf)

0,98

Protection class against electric current

Luminous flux, lm

6600...12000 lm

Height

110...165 mm

Width

275 mm

Length

705 mm

Housing material

Die-cast aluminum alloy

Mounting type

Cantilever

Degree of protection against mechanical influences

IK08; IK09

Weight

4,5-6,5 kg

Optical element material

Polymethyl methacrylate (PMMA)

Diffuser material

Tempered glass

Climatic execution (according to GOST 15150-69)

UHL1

Color rendering index (CRI)

70;80;90

Double angle half brightness

155×70;140×80;140×50;135×55;120;90

Additional equipment

NEMA connector, inrush current limiting relay.

Color temperature, Kelvin

6500 K

Degree of protection against dust and moisture (according to GOST R IEC 60598-1-2011)

IP66

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
