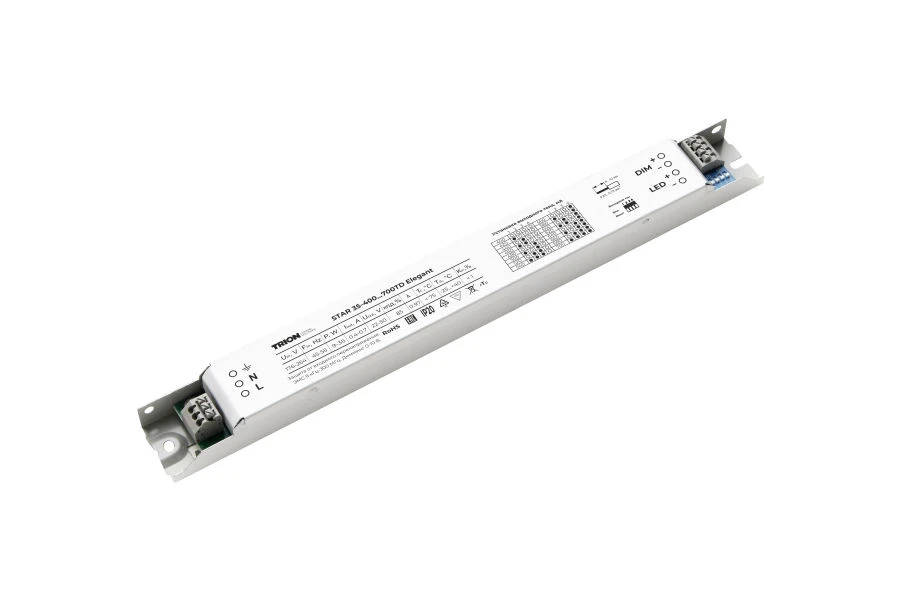

LED Driver STAR 35-400...700TD Elegant for LED Lighting Applications

Electronic Lighting Power Supplies

Manufacturer: TRION LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The STAR 35-400...700TD Elegant power supply is used in LED luminaires with supply voltage 176-264 V AC, output power up to 35 W and output current in the range of 400-700 mA with a step of 20 mA. Current selection is done by DIP switch. Designed for cost-effective power supply of LED modules as part of luminaires and other lighting devices that are used for design, interior and commercial facilities. The source can be applied in a lighting control system using 0-10V protocol.

Specifications

Connection type

Quick-clamping terminal blocks

Current selection function

DIP switch

Galvanic isolation

~1.5 kV 50 Hz

Warranty period of operation

5 year

Electrical safety class

Electromagnetic compatibility and electrical safety

Conforms to the requirements of ?? ?? 020/2011 "Electromagnetic compatibility of technical means"

Degree of enclosure protection

IP20 according to GOST 14254 (IEC 60529)

EFFICIENCY, %

87 %

Weight, g (not more)

200 year

Overall dimensions, mm

281 x 29 x 22.5

MTBF, hours

50000

Operating temperature, C

-40...40 °C

Thermal protection, C

100 °C

Input overvoltage protection, V

295...420 V

Resistance to high energy microsecond pulses

1 kV (L-N), 2 kV (L-PE, N-PE)

Input voltage range, V

176...264 V

Input power (range), W

12...40 W

Light flux ripples, %

less than 1

Output voltage (range), V

22...50 V

Output power (range), W

9...35 W

Output current, mA

400/420/440...700

Control interface

Output 0 - 10V, 100kOhm resistor, 1kHz PWM

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
