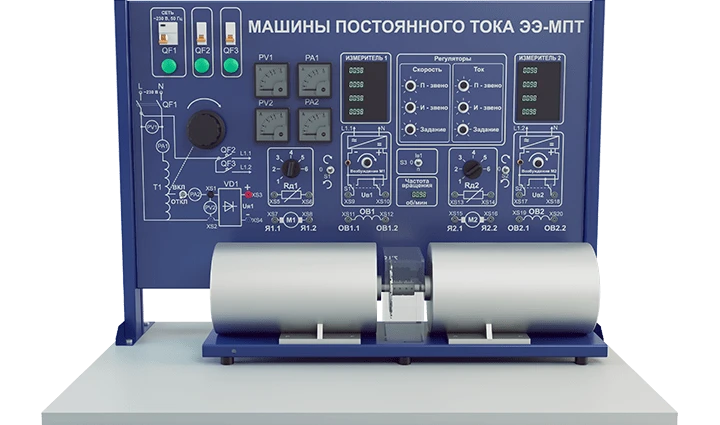

Laboratory Setup for Studying Direct Current Machines (EE-MPT1) for Educational Purposes

Study of operating characteristics and methods of regulation of DC motor of independent and parallel excitation. The list of works performed on the training stand: - Determination of the moment of inertia and flywheel moment of the drive by the method of free coasting - Experimental construction of the magnetisation curve of the DC motor (MPT) of independent excitation. Determination of electromechanical constant of MPT. Experimental determination of the dependence of the no-load torque of the MPT on the rotation speed- Investigation of natural and artificial mechanical and electromechanical characteristics of the DC motor (DPT) of independent excitation in the motor mode- Speed regulation of the DC motor of independent excitation in the motor mode at anchor control- Speed regulation of the DC motor of independent excitation in the motor mode at pole control
