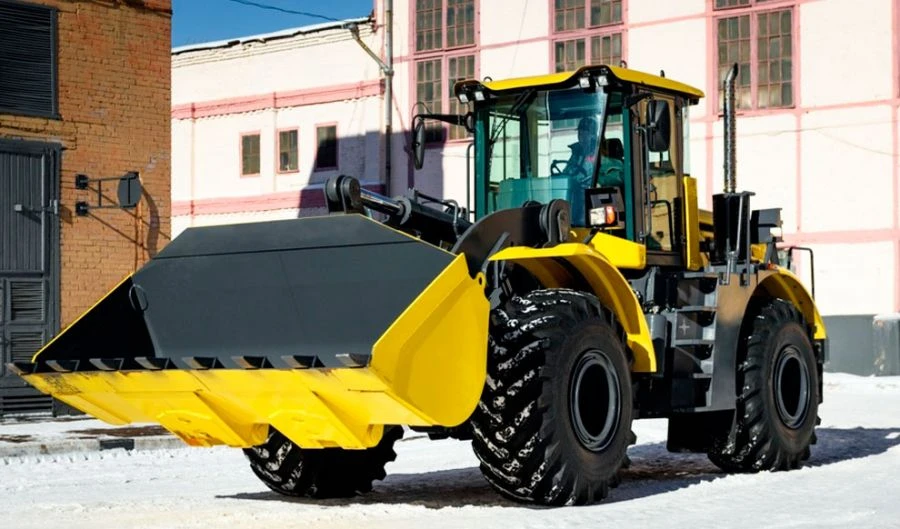

Front loader KIROVETS K-708PK7

New front loader. Operating weight, tonnes - 22. Base, mm - 3750.

Length, mm - 8900. Width (on the mouldboard for UDM, on the bucket for others), mm - 3100. Height on the cab, mm - 3780.

Clearance, mm, not less than 450. Folding angle of half-frames, deg. - 32.

Minimum turning radius (by bucket in transport position), m - 8.6. Maximum travelling speed, km/h - 39. Fuel tank capacity, litres - 600.

Model - YaMZ-238ND3-6. Type - 8-cylinder, V-shaped, 4-stroke, liquid-cooled, direct fuel injection, turbocharged. Rated power, kW (hp) - 173 (235).

Nominal crankshaft speed, min-1 - 1700. Maximum torque, Nm (kgf-m) - 1108 (113). Specific fuel consumption at rated power, g/kWh (g/hp-hr) - 218 (160).

Type - PTZ, hydromechanical, semi-automatic. Transmission with electro-pneumatic gearshift and modes. 2 modes of operation (working and transport), 2 forward and 2 reverse gears each....
