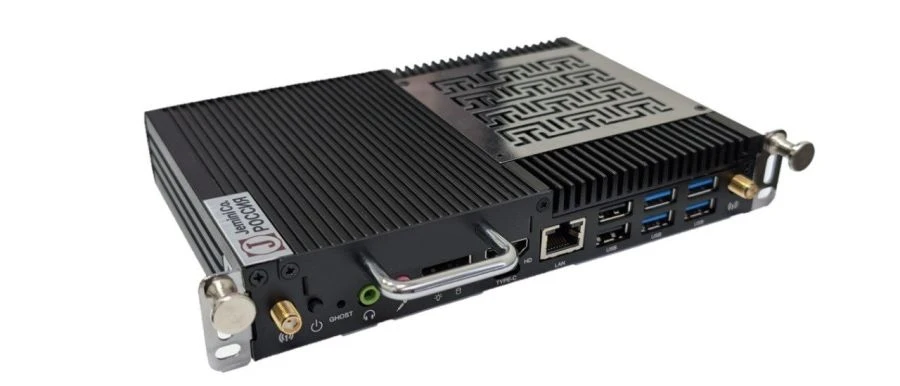

Jemini OPDT-J1 System Block OPS Computer

Available for Import

Jemini OPDT-J1 System Block Computer for Modular Integration

Desktop Computer Towers

Manufacturer: GEMINI LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Block system OPS (Open Pluggable Specification) computer, is a full-fledged computer in a compact modular case with external power supply, is designed, as a rule, for integration into various displays, such as digital signage, interactive panels, information kiosks, has a standard connector type JAE-80. The detachable unit is capable of operating independently as a full-fledged computer. As the central processor can be installed Intel Core processors generations 12, 13, series: U/P/H.

It supports DDR4 RAM with a frequency of up to 3200MHz., has built-in Wi-Fi and BT module, network adapter with LAN connector, USB ports, video interfaces HDMI, DP, as well as audio output and microphone input. System block is based on the domestic motherboard Jemini J1.OPS-M VPSN.466535.003, supports the installation of operating systems produced by the Russian Federation.

Specifications

Type of product according to PP RF 616

Computational electronic digital machines, other, containing or not containing one or two of the following devices for automatic data processing in a single housing: memory devices, input devices, output devices.

Form factor

OPS-computer, Minicomputer, Nettop with specialised JAE-80 standard connector

Processor

Intel Generations: 12/13 Core, Series: U/P/H

Type of storage

SATA III, NVMe SSD M.2 drive module

Storage capacity

128GB, 256GB, 512GB, 1TB, 2TB, 4TB

Maximum RAM frequency

3200

Number of slots for installing RAM

2 pcs

Network adapter

Built-in

Ethernet Gbit/sec. data rate

10; 100; 1000;

Front panel interfaces

HDMI 2.0, DP 1.4, USB2.0, USB3.0, USB Type C, AUDIO IN/OUT, MIC IN, M.2, SATAIII

USB type C data transfer speed

Audio

AUDIO IN/OUT

Built-in Wi-Fi, BT module

Armoured glass

Network card

Integrated

Power supply

external

Front panel I/O ports

DP, HDMI, USB2.0, USB3.2 Gen1, AUDIO IN/OUT, MIC IN, LAN RJ45

Amount of installed RAM

2...64

Installed disk drive capacity

128GB - 4TB

Number of USB2.0 Type A ports on the front panel

Number of USB3.2 Gen1 Type A (USB3.1 Gen1, USB3.0) ports on front panel

Presence of specialised connector JAE-80

Armoured glass

Number of USB Type-C ports on the front panel

Housing material

Metal

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
