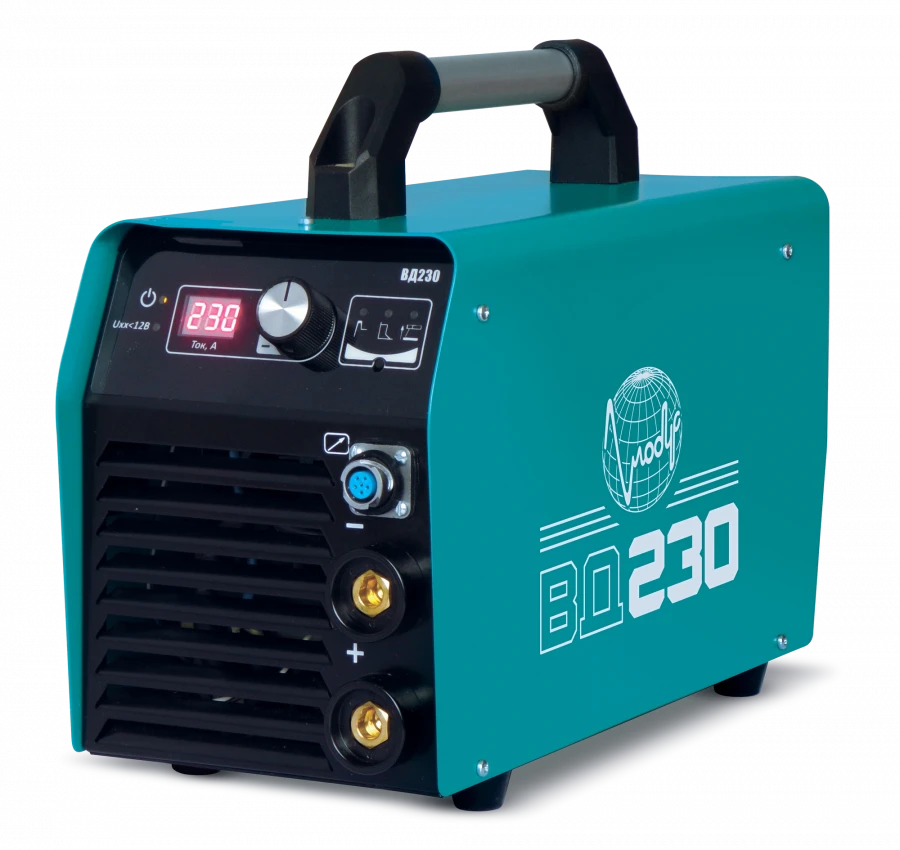

Inverter Welding Machine VD 230 for Manual Electric Arc Welding

Welding machine VD 230 is designed for manual electric arc welding of steel materials, parts and aggregates (MMA mode) with direct current by piece coated electrodes.
Power supply 1~230 V 50 Hz;
Welding current, A 15 - 230;
Main mode of operation - MMA;
Additional operation mode - TIG;
Electrode diameter, mm 1,6 - 5;
Percentage of load at current 230 A - 70%;
Overall dimensions, L x W x H, mm 390 x 160 x 280;
Weight, kg - 6,3;
- Automatic shutdown in case of deviation of supply voltage from the permissible range and in case of overheating;
- Adjustable functions ARC FORCE, HOT START, "arc quenching";
- ANTISTICK function, protection of output circuits against short circuits;
- Provision of operability at mains voltage reduction up to 110 V;
- Digital indication of welding current;
- Remote control of welding current from RC panel-1 with cable length up to 30 m;
- Memory of the last actual value of output current;
- Automatic fan control
