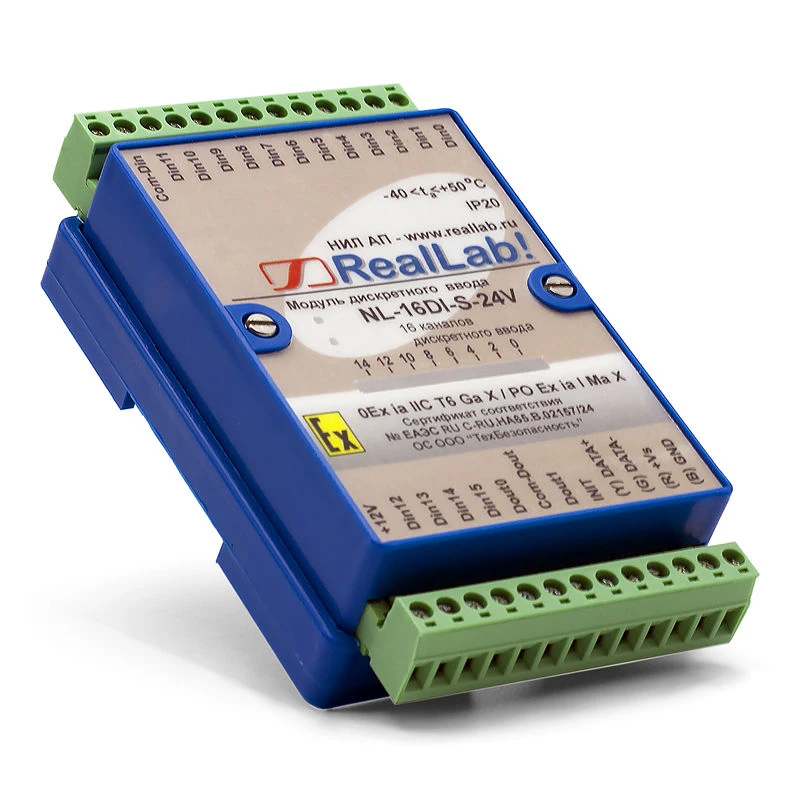

Intrinsically Safe Discrete Input Module with 16 Channels NL-16DI-S-24V

Intrinsically Safe Discrete Input Module NL-16DI-S-24V for Hazardous Environments

Manufacturer:NIL AP LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Purpose: discrete input module Explosion protection marking: 0Ex ia IIC T6 Ga X or PO Ex ia I Ma X Discrete input: 16 channels of discrete input with group isolation availability of built-in power supply "dry contacts" Types of protection: against overvoltage and current overload on input, output, interface, static electricity, etc. Galvanic isolation: galvanic isolation voltage 2500 V Logic zero level: not more than 2 V Logic one level: 3...12 V Temperature: temperature range from -40 to +50 C Connection interface: RS-485 interface, Modbus RTU protocol and ADAM-compatible (DCON) Discrete output: 2 isolated discrete outputs Optional: additionally installed isolated built-in power supply "dry" contacts Supply voltage: from 10 V to 26 V Dimensions: 123x76x33 Warranty: 18 months

Specifications

Power consumption
0.4 W
Operating temperature range
-40...50 °C
Dimensions (WxWxH)
123x76x33 mm
Nutrition
10...26 V
