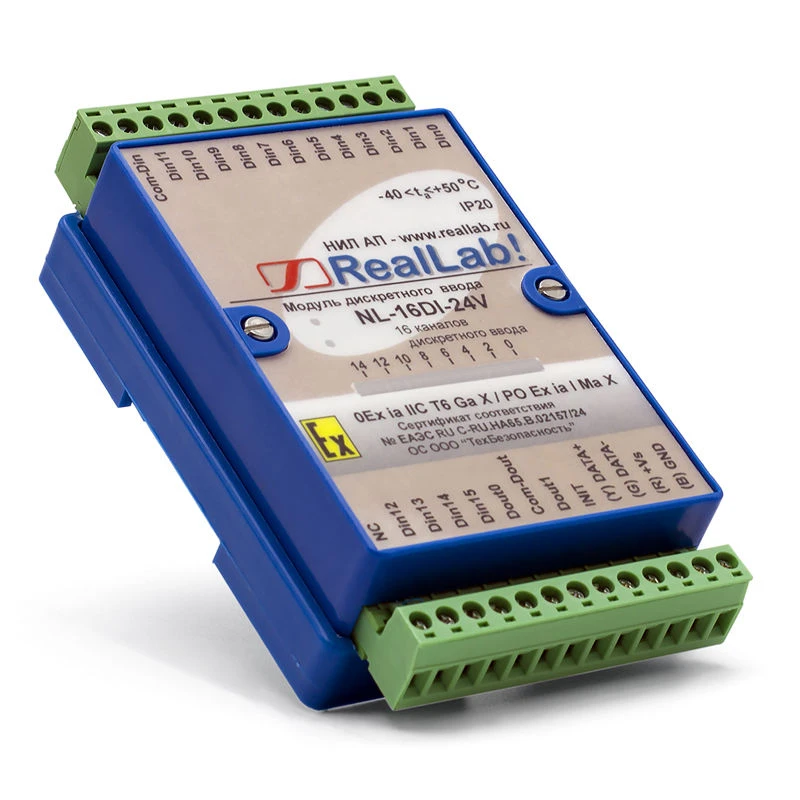

Intrinsically Safe Discrete Input Module NL-16DI-24V for Industrial Applications

Purpose: discrete input module Explosion protection marking: 0Ex ia IIC T6 Ga X or PO Ex ia I Ma X Discrete input: 16 channels of discrete input with group isolation Overload protection: protection against overvoltage and current overload on input, output, interface, static electricity, etc. Galvanic isolation: galvanic isolation voltage 2500 V Logic zero level: not more than 2 V Logic one level: 3...12 V Temperature: temperature range from -40 to +50 C Connection interface: RS-485 interface, Modbus RTU protocol and ADAM-compatible (DCON) Discrete output: 2 isolated discrete outputs Power supply voltage: from 10 V to 26 V Power consumption: not more than 0.4 W Dimensions: 123x76x33 Warranty: 18 months
