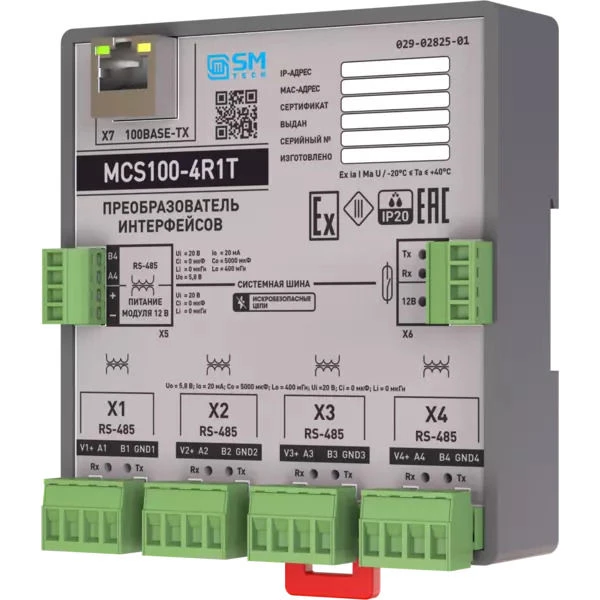

Interface Converter for RS-485 to Ethernet 100BASE-TX

Available for Import

Interface Converter for Secure Data Exchange between RS-485 and Ethernet 100BASE-TX

Integrated Communication Equipment

Manufacturer: SPBEX-MINING LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The interface converter is designed for data exchange between intrinsically safe interfaces RS-485 and Ethernet 100BASE-TX. In the field of industrial automation, the device makes it possible to combine and build information acquisition and processing systems based on two interfaces - Ethernet and RS-485. MCS100 interface converter is used as a part of the equipment functioning in conditions of underground workings of mines, mines and their surface structures, including dangerous by gas and (or) dust, according to the explosion protection marking and requirements of industry safety rules.

Specifications

Explosion protection marking

Ex ia I Ma U

Product operating temperature

-20...40 °C

Degree of protection against external influences

IP20

Protection class against electric shock according to GOST 12.2.007.0-75

III

Rated voltage of intrinsically safe power supply

B1/B8 2100/900 MHz V

Power consumption, max.

0.3 W

Ethernet communication interface

100BASE-TX (twisted pair)

Maximum number of connections via RS-485 interface

Up to 32 per channel

Supported RS-485 interface protocols

Modbus RTU, Modbus TCP

Number of connectors (typical version MCS100-4R1T)

RS-485 - 4 pcs.; 100BASE-TX - 1 pc.

Overall dimensions, not more

125 x 105 x 50 mm

Weight, not more

0.4 kg

Assigned service life

10 years

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
