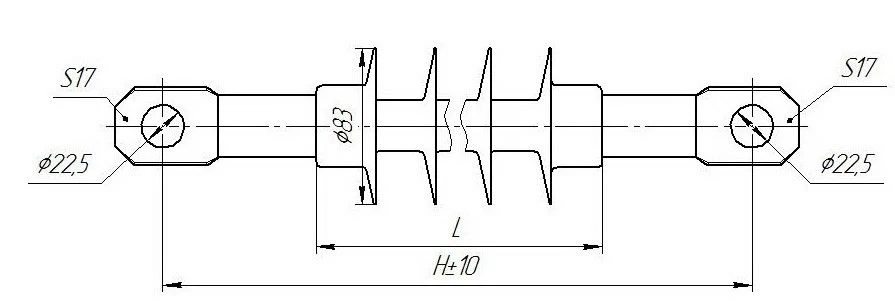

Insulator Tension Rod with Ribbed Silicone Rubber Shell NSPKr 120-25/1.5I

Available for Import

Insulator Tension Rod with Ribbed Shell for 25kV Electric Railways

Electrical Insulator Rods

Manufacturer:INSTA LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/0,95-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,1-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/0,8I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,1I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-3/0,6I

Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,2I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-3/0,6I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-3/0,8-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25-25/1,1-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/0,95-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,3-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-3/0,8 Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,5-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/0,95 Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,3-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/0,95-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,1-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,2-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/0,8-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-3/0,8-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/0,95I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-3/0,6 Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,1-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,5-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,5I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,5-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-3/0,6-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,3-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,2-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,3 Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/0,8-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,2 Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,1I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-3/0,8-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,2I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,5-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,5 Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,3-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-3/0,6-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,3I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/0,95I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,2-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-3/0,6-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/0,95-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-3/0,6-D Tension rod insulator with ribbed shell made of organosilicon rubber NSPKr 120-25/0,8-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,2-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/1,3I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-25/0,8-K Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 160-3/0,8I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/1,1 Tension rod insulator with ribbed shell made of organosilicon rubber NSPKr 120-3/0,8-D Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-25/0,8-I Tension rod insulator with ribbed sheath made of organosilicon rubber NSPKr 120-3/0,8I

Description

They are intended for isolation and fastening of elements of contact network of electrified AC railways with voltage of 25 kV at ambient temperature from minus 60C to plus 70C. Climatic execution and placement category UHL1 according to GOST 15150.

Specifications

Leakage path length

1500 mm

Building height

771 mm

Rated operating voltage

25 kV

Mechanical breaking force in tension, kN

120
