Available for ImportIndustrial 3D Printer F2 Match Pellet for Large Scale Manufacturing
Manufacturer:F2 Innovations LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

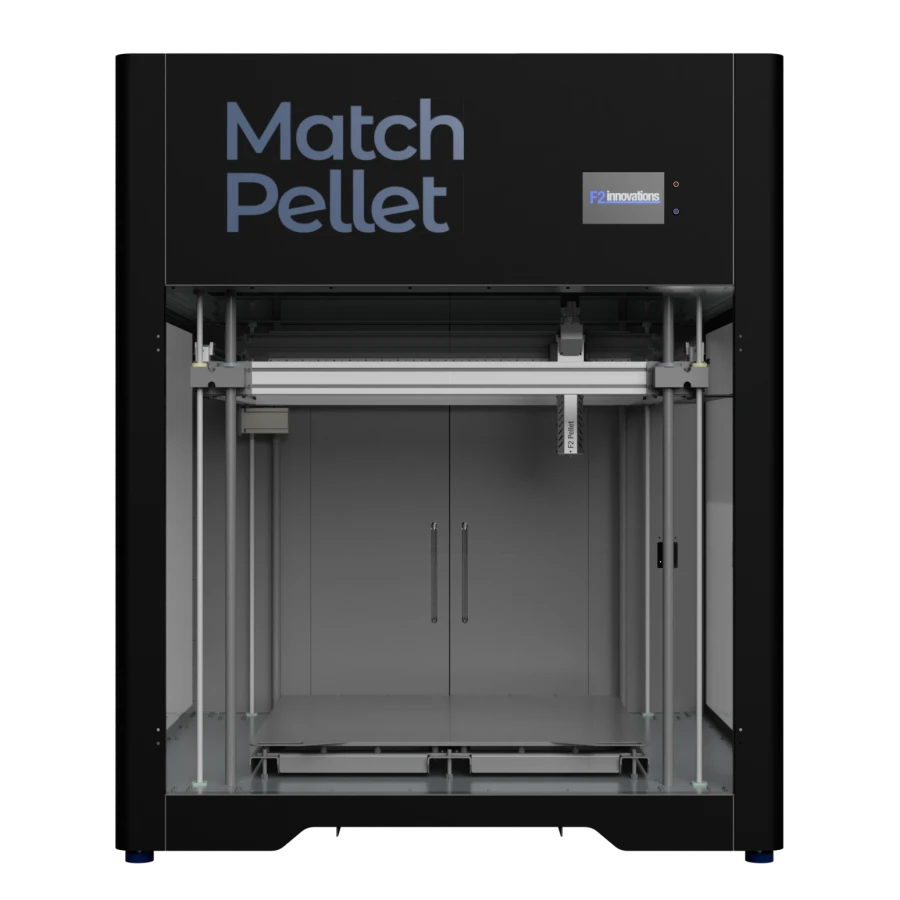

F2 Match Pellet is a large-scale industrial FGF 3D printer with an enclosed chamber and a print area of 1000x1000x1000mm. The F2 Match Pellet is equipped with a fused granulated fabrication (FGF) extruder that heats up to 450 degrees Celsius with an output of up to 3kg/h. The extruder is equipped with tri-zone heating technology, which ensures uniform material feeding and high quality of the product. This technology is ideal for printing moulds, punches and dies for composite lay-up.
Specifications
Type of product according to PP RF 616
Additive material extrusion plants
Extruder
One screw extruder
Printhead travel speed during printing
150 mm/s
Extruder capacity
Up to 3kg/hour
Water cooling of the extruder
Armoured glass
Nozzle heating
450 °C
Nozzle diameter
1,5; 3; 5; 8 mm
Nozzle change type
Manual nozzle change with hand tool
Layer thickness
0.5-4 mm
Availability of a system for controlling the presence of plastic
Armoured glass
Printing area
1000x1000x1000 mm
Type of working chamber
Closed, not heated
Chamber heating
no
Availability of a cooling system for the printed product
Armoured glass
Type of print platform
Heated removable with magnets, fixed on the platform
Heating the print bed
100 °C
Auto table calibration
Armoured glass
Built-in print customization function
Armoured glass
Type of printer control
Control panel with display on the device housing
Availability of uninterruptible power supply system
Armoured glass
Connection interface
Ethernet
Availability of printer access control
Armoured glass
Continuation of printing after the power is turned off
Armoured glass
Availability of remote printer control function
Armoured glass
Type of 3D printer compatible plastic
ABS, PLA, PP, PETG, TPU, PA, Keltran, ABS+CF, PETG+GF
Number of heating zones
3
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
