Hinged Clamp "11/8" for Securely Connecting Tubes

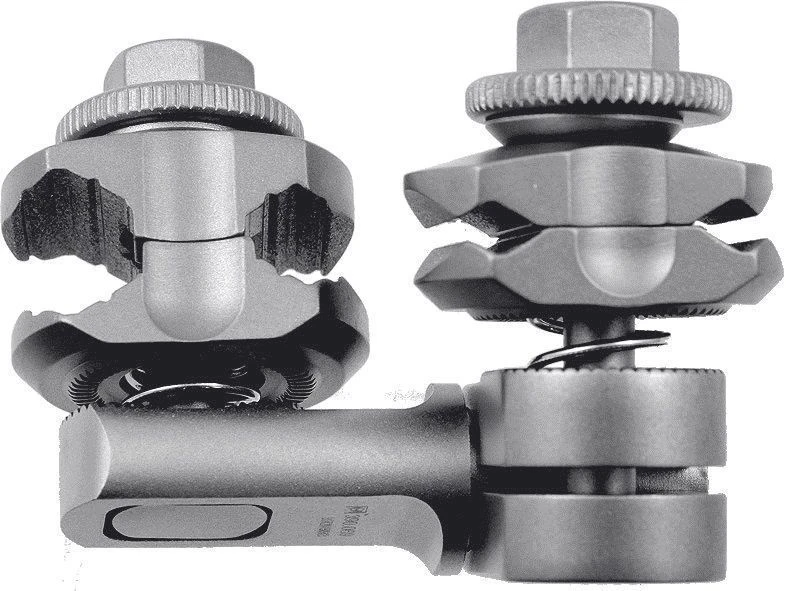

The articulated rod holder has a bearing axis with two brushes with 2-sided open-type clamps. Non-disassembling, it provides one-stage 8-point fixation of 2 support tubes and 4-point fixation of 2 Schanz rods in any combination, and their mutual movement in the range of 360?. The total adjustment of the mutual location of the system "support tube - articulated rod holder - Schanz rod" is made in 3 planes.

All clamping and fixation units are spring-loaded, the hexagonal locking nuts have a stroke limiter and will not fall out. There are spoon-shaped recesses on both outer sides of the lower bar, the inner spoons for the support tubes have an anti-slip coating. The rod holder is marked with the diameter of the rods to be clamped, individually labelled and packaged.

For Ø8mm and Ø11mm tubes For Ø4mm, Ø5mm and Ø6mm rods Spring-loaded, self-retaining.
