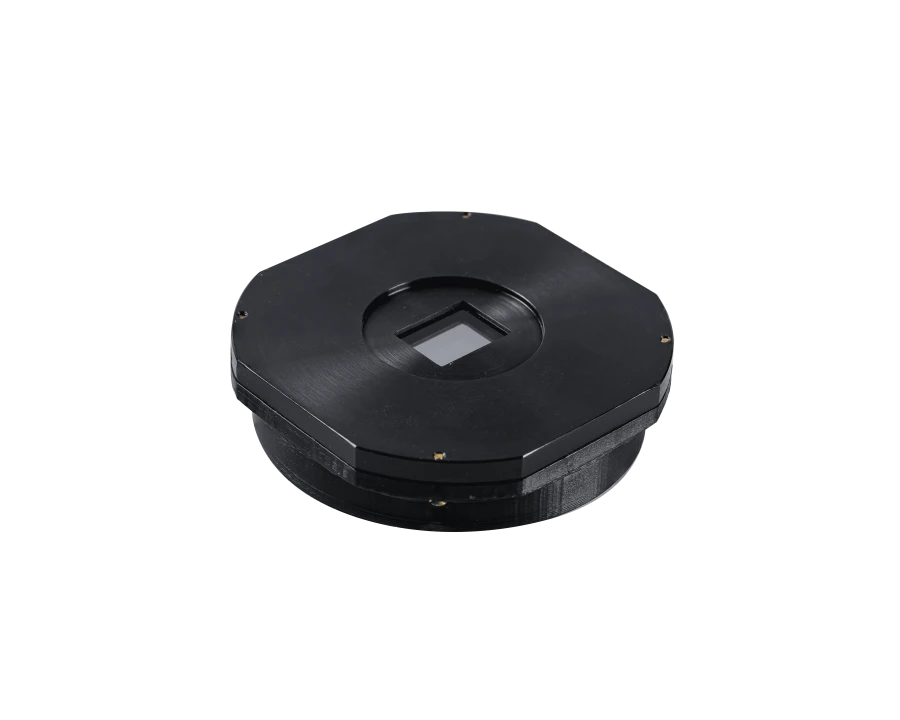

High-Sensitivity Hybrid UV TV Instrument FCHU UTK-UV1 for Accurate UV Measurements

Video Recording Equipment

Manufacturer: Electron OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The hybrid TV instrument for the UV range uses Cs2Te sun-blind photocathode. The low sensitivity of this photocathode at wavelengths longer than 300 nm reduces the need for strong suppression of visible and IR radiation using optical filters. There are no fibre optic elements that reduce the radiation resistance of the device. The device is not afraid of light loads in the visible and IR range, is resistant to electromagnetic fields and thermal shocks. Focusing - proximity.

Specifications

Operating range of photocathode spectral sensitivity

200...300

Quantum yield of photocathode at maximum

10...20 %

Operating range of spectral sensitivity

200...1060

Voltage on photocathode, not more than

6 kV

Amplification, not more than

700

Sensing area size, mm

13,1?9,8

Number of pixels of CCD ECH matrix

76x85x80 (290)

Pixel size, µm

17x34

Working irradiance at 280 nm, W/cm^2, not more than

5*10^(-10)

Resolution at working irradiance, TVL

400

Threshold irradiance at 280 nm, W/cm^2, max.

2*10^(-11)

Sensor diameter

58 mm

Sensor height (with leads), mm

13 (21)

Sensor weight

60 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
