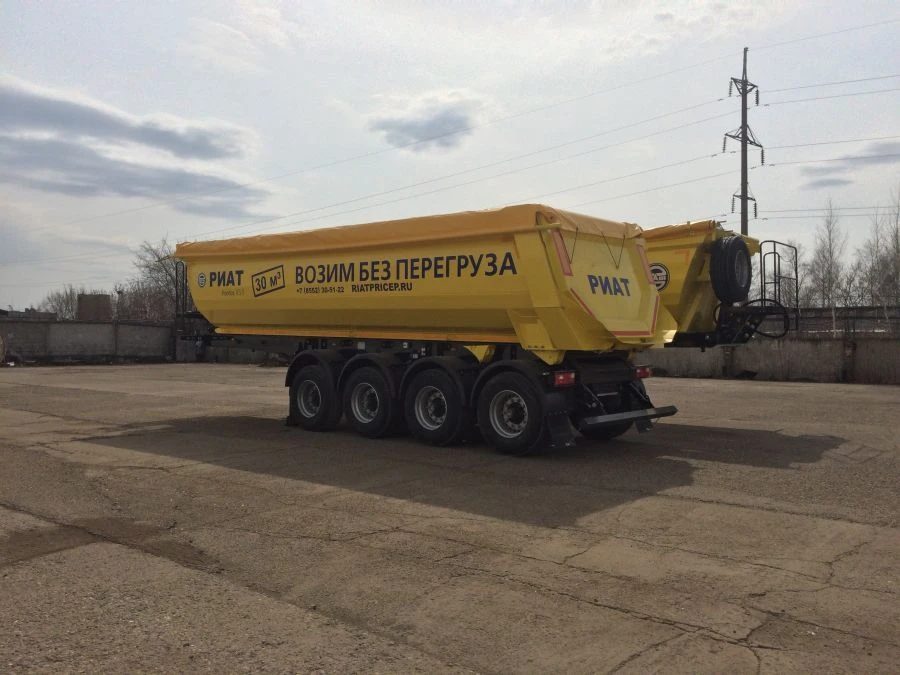

Half-Pipe Dump Semi-Trailer Model 924940-130 for Efficient Cargo Transport

HALF-PIPE tipper trailer. Model 924940-130 Overall dimensions of the semi-trailer (DxWxH), mm.10 050x2550x3100 Internal dimensions of the body (DxWxH), mm.8 200x2305x1640 Volume of transported cargo, cu.m.30 Mass indicators: -Weight of the curb weight of the trailer, kg.8 500 -Carrying capacity, kg.35 300 -Gross weight, kg.43 800 Load on SSA, kg.11 800 Bogie load, kg.32,000 CCS height, mm.1 150 Unloading direction / Lift angle of the platform, º Back / 45º ...47º Track, mm.2050 Body tipping axles are located closer to the rear axle to minimise the possibility of suspension failure. Resistance to damage to the spars during operation on bad roads due to the use of high-strength steel for the upper and lower flanges of the frame members.
