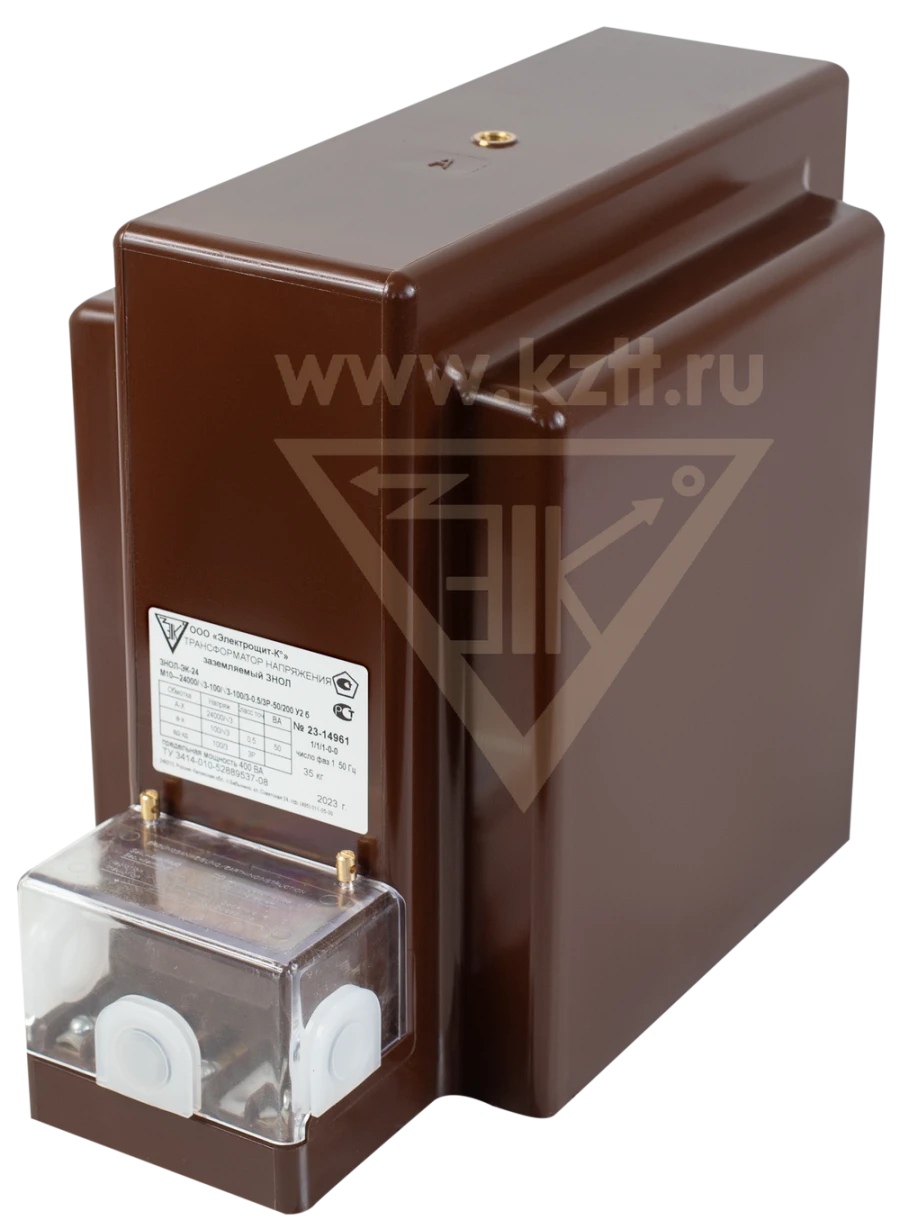

Grounding Voltage Transformer ZNOL-EC M10 for Reliable Power Supply Systems

Earthed voltage transformers ZNOL-EC M3 for voltage classes up to 24 kV with cast insulation are designed for operation in power supply systems with isolated neutral, as well as with neutral, grounded through an arc suppression reactor or resistor, in measurement, protection, automation, control, signalling of alternating current of 50 and 60 Hz frequency, rated voltage from 3 kV to 24 kV at electric power plants of all types, including nuclear power plants, as well as at electric substations of power systems, industrial and agricultural facilities, as well as for export.Voltage transformers are designed for wide application in complete switchgears of indoor and outdoor installation, CSR chambers, current conduits of generator voltage and auxiliary voltage of power stations and substations.Transformers ZNOL-EC can be used for control of electric power quality indicators (EQI).Climatic design of transformers "U", "UHL" or "T"
