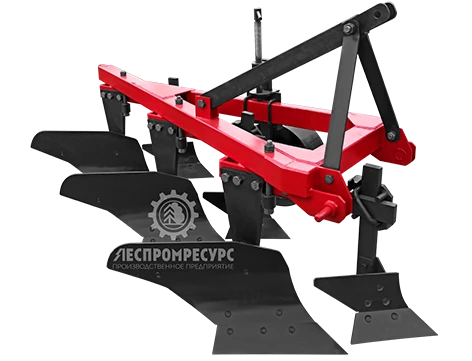

General Purpose Plows Type PLN for Efficient Soil Tillage

Purpose: Ploughs are designed for ploughing to a depth of up to 30 cm under cereals and technical crops of various soils not clogged with stones, flagstones and other obstacles, with specific resistance up to 0.09 MPa (0.9 kgf/cm2).

Features: Type - mounted; Coupled with tractors of traction class - 0.9-5; Working width, cm - 70-280.

Design Description: The main assembly units of the plough are: frame, bodies, skimmers, support wheel, linkage. The ploughing depth is set by the support wheel screw. The skimmer is set according to the ploughing depth. The body consists of a stand, to which the ploughshare, mouldboard and field board are attached.
