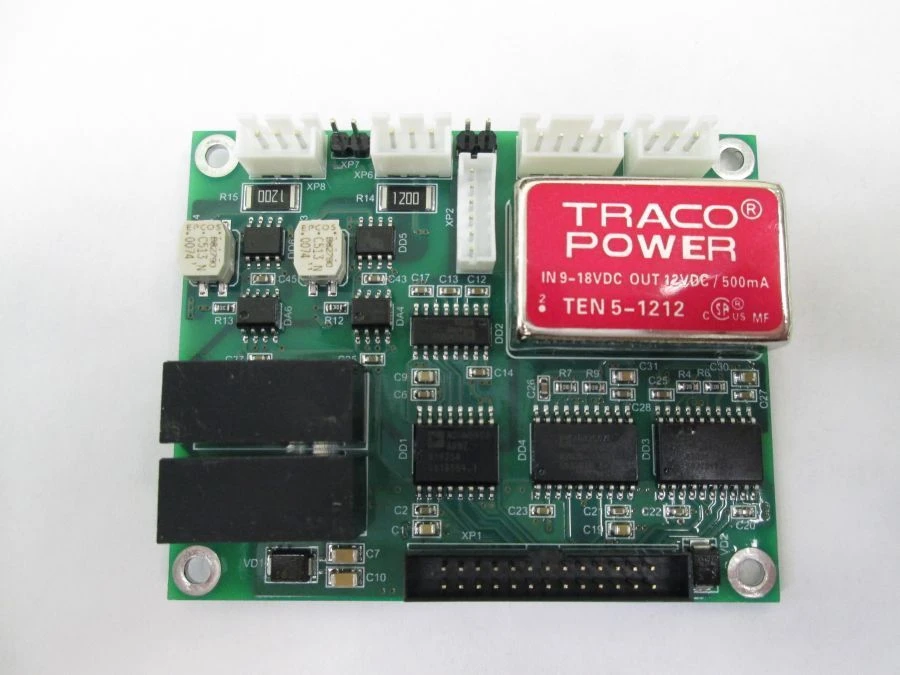

Galvanic Isolation Module JLTK.687281.208 for Enhanced Interference Resistance

Module of galvanic isolation ZhLTK.687281.208 (hereinafter - Module) is designed to expand the functionality of the system board ZhLTK.687281.173 in terms of providing noise immunity of I/O interfaces in industrial computers and controllers according to OST 32.146-2000. Field of application: industrial computers and controllers. I/O interfaces protected by the module: <ul> <li>- 2 x CAN;</li> <li>1 x RS-232;</li> <li>2 x RS-485.</li> </ul>The module is produced in climatic version U, placement category 2.1 according to GOST 15150-69.

By degree of protection against penetration of water and foreign objects in the version IR00 according to GOST 14254-2015. Overall dimensions of the Module, Length x Width x Height - 75x60x15 mm.
