Frequency Counter Module NL-2C-D for Accurate Impulse Counting

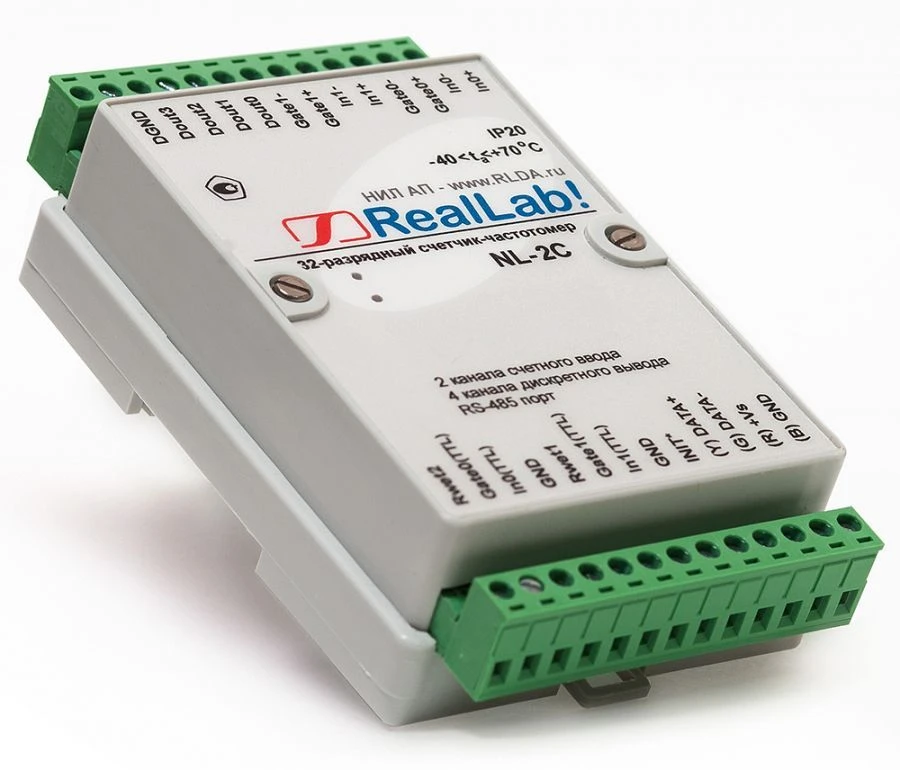

Counter-frequency meter module NL-2C-D

Purpose:designed for counting imulses and their frequency Connection:2 independent channels of 32 digits each 4 isolated discrete outputs are additionally available Display:5-digit digital LED display Maximum frequency:200 kHz Galvanic isolation:3.7 kV isolated inputs Inputs:non-isolated inputs with software-configurable logic thresholds Outputs:4 optional isolated discrete outputs available Power supply:dry contact power supply outputs Filter: Tunable digital filter Counting:count enable inputs Temperature:operating temperature range from -40 to +70 °C Connection interface:RS-485 interface Protocols:default protocol is DCON (ADAM-compatible) and MODBUS RTU (software enabled). Note: The module can be additionally equipped with a 5-digit digital LED display. Dimensions (HxWxH):123x76x33 mm Warranty:36 months
