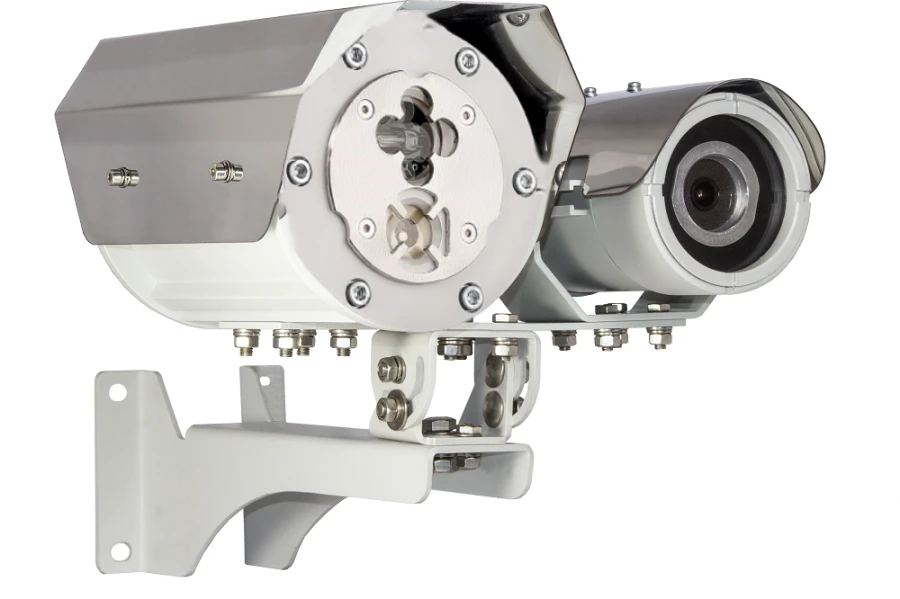

Flame Detector Spectron-601-Exd-A-B-IP with Video Module

Available for Import

Flame Detector Spectron-601-Exd-A-B-IP for Enhanced Fire Safety

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire flame detector with video module Spektron-601-Exd-A-V-HART Spectron-601-Exd-N-HART fire flame detector Spectron-601-Exd-N-V-IP-HART fire flame detector Fire flame detector with video module Spektron-601-Exd-A-V-IP-HART Fire flame detector with video module Spektron-601-Exd-A-V

Fire flame detector with video module Spektron-601-Exd-N-V-IP Spectron-601-Exd-N-HART fire flame detector

Description

The detector fire flame detector Spectron-601-Exd-A-V-IP is a fire flame detector with a video module and self-monitoring function, operating in the infrared and ultraviolet ranges. The detector is equipped with a self-test function with transmission of the "Fault" signal to the control panel. Detect manual arc and argon welding as false alarms.

They are used in fire alarm and fire extinguishing systems in hazardous areas of classes "1" and "2" of closed objects and open installations, as well as in underground workings of mines, mines and their above-ground structures. The video module is designed for registration of alarm events. The video module is manufactured in a separate housing and is mounted on a common bracket with the IPP located on the same axis as the flame detector.

Power to the video module is supplied from the PPI via armoured cable. A separate power supply board is installed in the PPI to operate the video module.

Specifications

Weight

4 kg

Overall dimensions

245x315x290 mm

Viewing angle

Flat grinder, Specialised grinder

Viewing angle of the video module

Viewing angle

Video module

IP Digital

Video module resolution

2MP (1920x1080)

Local storage

USB-HDD up to 128GB

Interface

Ethernet+????

Degree of protection of the shell, IP

Operating temperature

(55);+90 °C

Designation

IR/UV MULTI-BAND FLAME DETECTOR IP329/330

Assignment

Designed for fire extinguishing systems and fire alarm systems at oil and gas facilities and their infrastructure

Operating temperature range

Flat grinder, Specialised grinder °C

Explosion protection marking

1Ex db IIC T6...T4 Gb / Ex tb IIIC T85ºC...T135ºC Db

Housing material

Aluminum alloy

Power supply voltage

18...28 V

Sensitivity levels

Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
