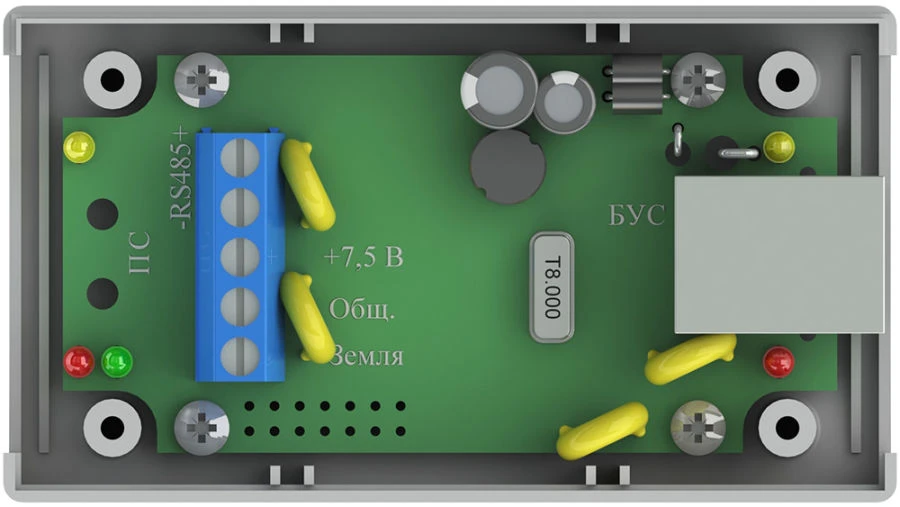

Available for ImportFire Alarm Integration Module Rubezh IFA-001 for Evacuation Management
Manufacturer:INTELLECT SECURITY LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Block interfacing with fire alarm system Rubezh IFA-001 for 64 fire alarm zones, is designed to work as part of the warning system and evacuation control. Serves for coordination and transmission of control signals from the fire alarm system to the fire warning system.
Specifications
Maximum number of fire alarm directions
64
Maximum number of notification lines
64
Maximum number of messages
32
Communication interface with the PC
RS-485
Exchange rate on the interface of communication with the PS, bps
600...115200
Wave impedance of communication line, ohms
120 ohm
Communication interface with the BUS
RS-485
Data transfer rate, bps
115200
Output voltage of stabiliser, V
7.5 V
Supply voltage, V
24 (+20/-66%)
Type of mains current
permanent
Power consumption max, W
0.36 W
Overall dimensions, mm
90x50x32
Weight not more, kg
0.1 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
