Available for Import

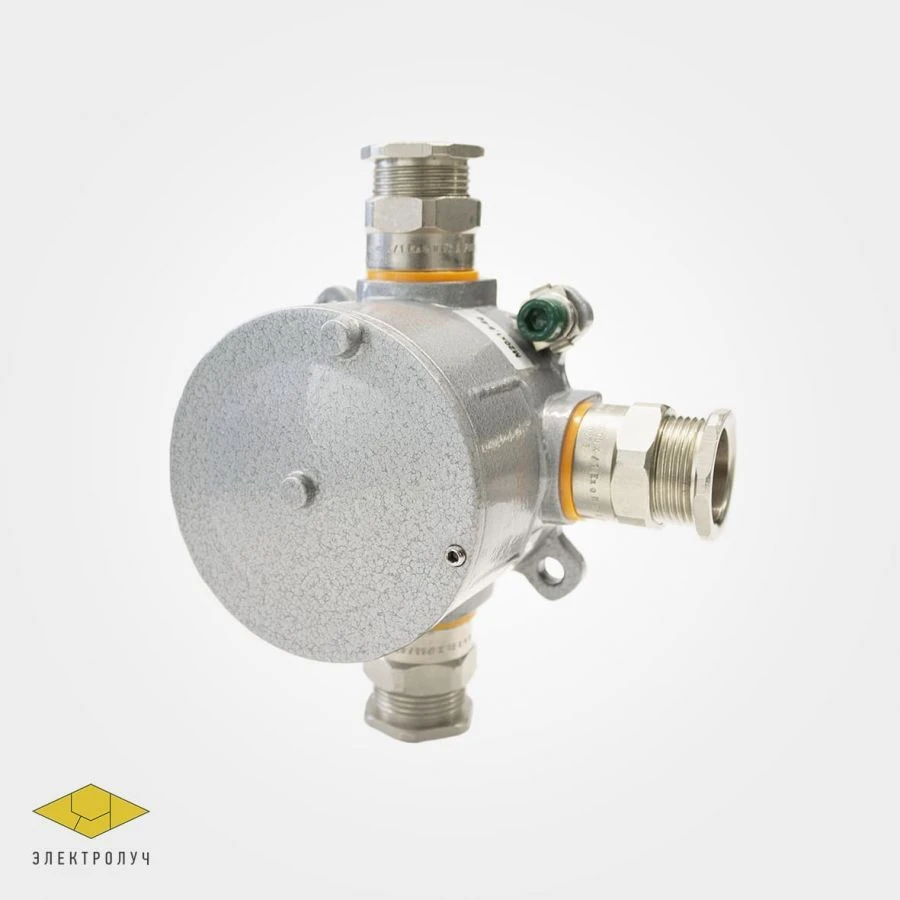

Explosion-Proof Distribution Box KR-V64 for Safe Electrical Connections

Electrical Circuit Protection

Manufacturer: ELEKTROLUCH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Explosion-proof distribution boxes KR-V64 are designed for making connections and branches of cable wiring laid indoors and outdoors in hazardous areas of classes 1 and 2 according to GOST R 52350.10, GOST R 52350.14 and other regulatory documents governing the use of explosion-proof electrical equipment. Boxes ??-?64 are very compact, convenient in application, designed for connection of cables with cross-section up to 2,5 square mm. Fastening to the wall is carried out on the holes in the body flanges with two M6 bolts.

Explosion-proof box KR-B64 is supplied as a set with various cable glands and without them (the holes are closed with explosion-proof plugs). The set can also include a stationary terminal block of spring type WAGO or analogue, various types of explosion-proof cable glands and plugs.

Specifications

Rated supply voltage

500 V

Rated current

24 A

Maximum cable cross section

2.5 mm²

Number of cable glands

1...4 pcs

Crimped cable range

20S16, 20S, 20

Type of cable routing

Open laying, in metal sleeving, armoured cable, armoured cable laid in a pipe

Protection class against electric current

I class according to GOST 12.2.007.0

Housing material

Aluminum alloy with magnesium content less than 7.5 %

Mounting method

Wall mounting, ceiling mounting

Operating temperature conditions

-60...55 °C

Climatic version

UHL1

Degree of protection IP

IP66

Length

84 mm

Width

84 mm

Height

71 mm

Net weight

2 kg

Gross weight

2.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
