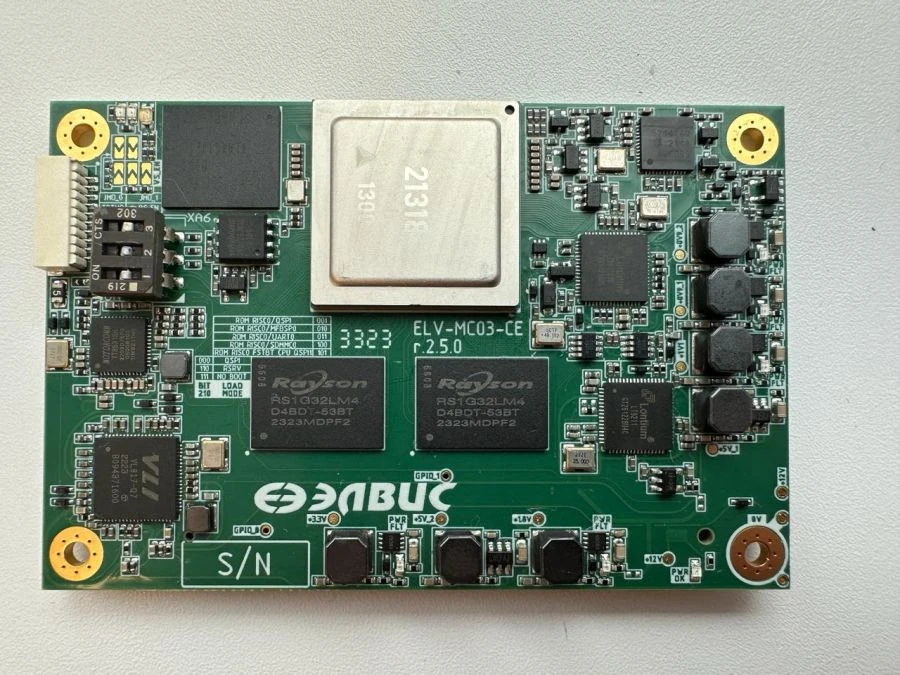

ELV-MC03-CE COM Express Type-10 Processor Module for Advanced Applications

ELV-MC03-CE: processor module of COM Express Type-10 format, allowing to use the functionality of 1892VA018 processor (SKIF). The product is structurally and functionally designed as a complete radio-electronic device in modular design of zero level in the form of a printed unit in a housing-less design.Specifications:Processor: 1892VA018 "SKIF "RAM: 2x LPDDR4, not less than 4 GB per port;Non-volatile memory: QSPI Flash, 32 MB; eMMC 5.0, 32 GB;High-speed interfaces: 1x 1G Ethernet; 1x PCIe 4x Gen.3; 2x SATA 2.0; 4x USB 2.0, Host; 1x USB 3.0 OTG.Video Outputs: HDMI 1.4; 18/24-bit Single Channel LVDS;Audio: I2S; Speaker Out.Other Interfaces: UART Tx/Rx/RTS/CTS; I2C; SMBUS; SPI; eSPI; SDIO (4-bit); PWM; Power Management Signals; Watchdog.Operating System: Linux.Power supply:Main supply voltage: +12 V 5 %;RTC supply voltage: +3,3 V 5 %;StandBy supply voltage: +5,0 V 5 %;Power consumption: not more than 12 W.Overall dimensions 84 mm 55 mm.
