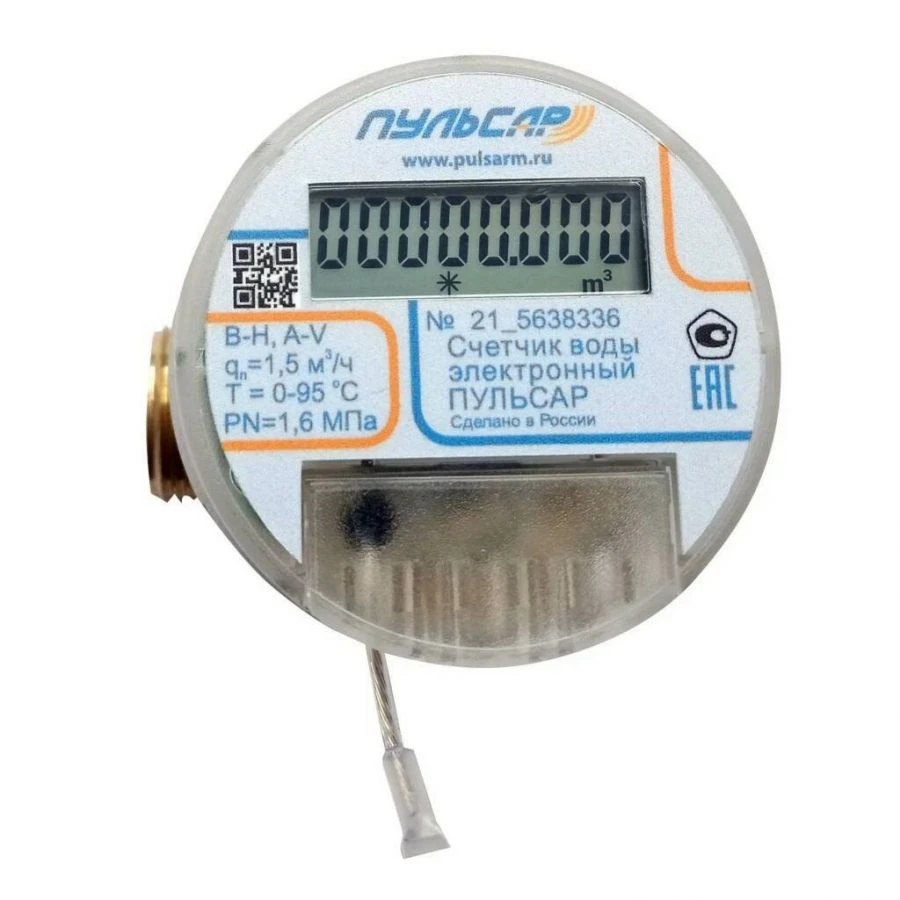

Electronic Water Meter "PULSAR" for Measuring Hot and Network Water

Water meters universal electronic "Pulsar" are designed to measure the volume of hot water according to SanPiN 2.1.4.1074 and network water flowing through the pipeline at a temperature from 0 C to plus 95C and the operating pressure in the water network not more than 1.6 MPa (16 kgf/cm2). Universal water meter can be used for metering of cold water.The meters correspond to metrological class B or C according to GOST R 50193.1 when installed on horizontal pipelines with indicator device upwards and class A or B (respectively) - on inclined and vertical pipelines.The meters have non-volatile memory. According to the M-Bus protocol it is possible to read a monthly archive with a depth of 24 records.The meters are supplied without interfaces and with interfaces: RS485, M-Bus, pulse output, radio output (IoT, LoRa, NB-IoT).

The choice of interface is made when ordering the device. The meters comply with the requirements of TR TS 020/2011.
