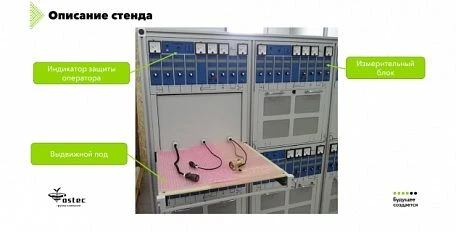

Electrical Training Stand for CZU Blocks - Optimize Performance Testing

Electrical Measurement Systems

Manufacturer: OSTEK-ELEKTRO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The purpose of electrical training is to provide a load equal to or less than the maximum permissible load during operation, or to provide such equivalent test conditions that allow the maximum number of potentially unreliable products in the tested batch to be identified in a short time.

Features:

Designed for electrical training of vacuum devices such as travelling wave lamps (VWL). It allows simultaneous training of up to six devices. It is equipped with a multi-level protection system against electric shock. It has a load equivalent for periodic control of the stand output parameters. TECHNICAL DATA

2.1 General information

2.1.1 The number of items to be trained simultaneously is six.

2.1.2 Warm-up time of the system before the start of operation not less than 30 minutes.

2.1.3 The system provides continuous operation mode for 16 hours with a subsequent break of at least 8 hours.

2.1.4 The system is powered from a single-phase AC mains voltage...

Specifications

Collector DC Voltage Reproduction Ranges

100...400 V

Collector DC voltage setting step

1 V

Anode 1 DC voltage reproduction ranges

0...50 V

Anode 1 DC voltage setting step

0.1 V

Anode 2 DC voltage reproduction ranges

0...250 V

Anode 2 DC voltage setting step 1565473:Anode 2 DC voltage setting step

1 V

Absorber DC Voltage Reproduction Ranges

0...15 V

Absorber DC voltage setting step

10000 V

Case DC Voltage Reproduction Ranges

5...50 V

Step for setting the case DC voltage values

0.1 V

Heater dc voltage reproduction ranges

20...400 A

Heater DC value setting step

1 A

DC voltage reproduction ranges of ESPs

500...3500 V

Step for setting the DC voltage values of the ESH

10 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
