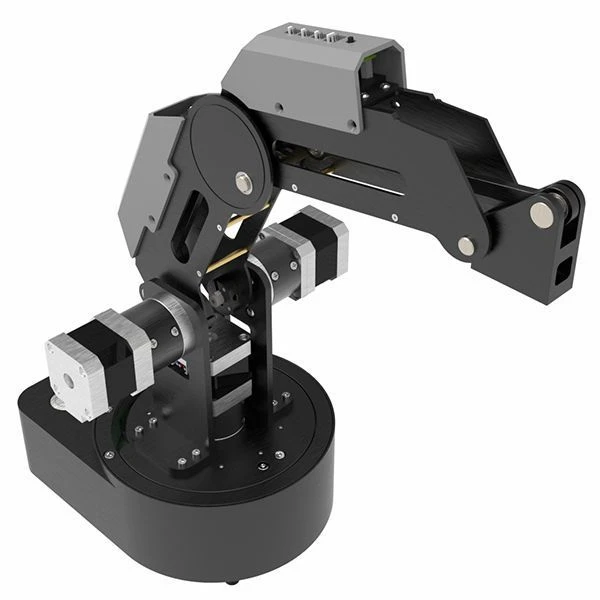

Educational Robotic Manipulator SD1 for Learning Robotics Applications

Vocational Training Equipment

Manufacturer: SAGA ROBOTICS OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The educational robot is designed to master the basics of robotics and prepare students for the introduction and subsequent use of robotics in industrial production.

Supply kit: Power supply unit. Suction cup with servo motor. Mechanical gripping device. Pencil and/or felt-tip pen holder. Laser engraving device complete with glasses. 3D printing device. A remote control. Wireless communication module. Designer mount.

Technical specifications: Number of axles: 4. Working radius: up to 350 mm. Motor type: stepper motors. Rotation angle: first axis 180°, second axis 125°, third axis 140°, fourth axis 180°. Repositioning accuracy: 0, 2 mm. Maximum payload: up to 500g. Installed power: 100 W. Rated voltage: 180-240 VAC with frequency 50/60 Hz. Operating temperature: 0 to plus 40°C. Protection class: IP20. Overall dimensions (WxHxH): 216x421x.

Specifications

Maximum load capacity

0.5 kg

Type of product

Robot manipulator training

Number of degrees of freedom

4 pcs

Replacement grip set

Armoured glass

Drawing nozzle

Armoured glass

Laser engraving nozzle with glasses

Armoured glass

3D printing nozzle with glass

Armoured glass

Насадка переходник на конструктор

Armoured glass

12V power supply unit

Armoured glass

Bluetooth wireless communication module

Armoured glass

Control panel

Armoured glass

Wi-Fi wireless communication module

Armoured glass

Filament feeder with hose

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
