Available for Import

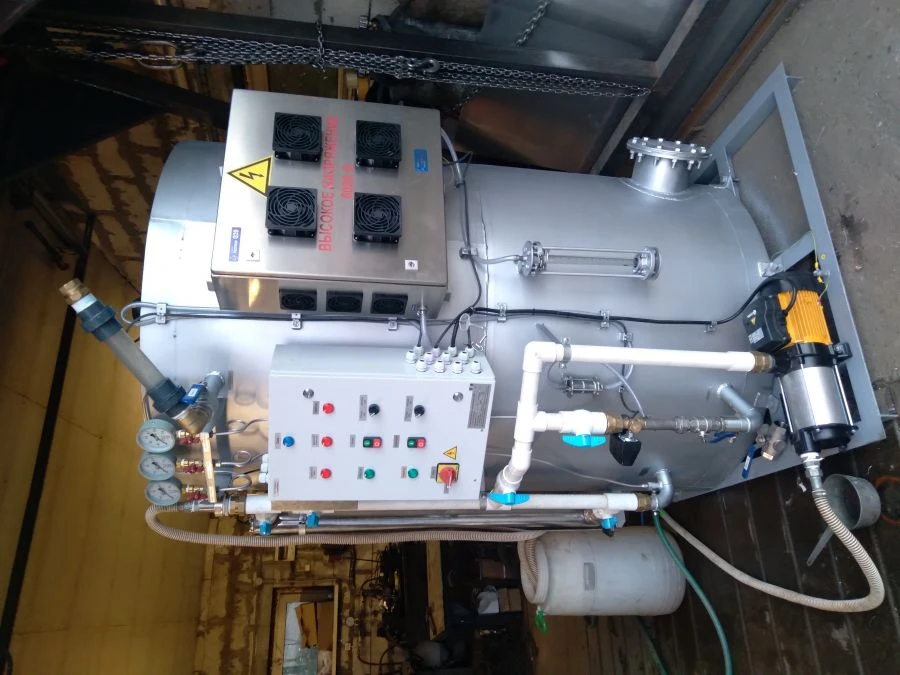

Drinking Water Preparation Station SPPV-5 for River and Coastal Vessels

Water Purification Equipment

Manufacturer: KOPROTON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Station SPPV-5 with drinking water capacity of 3-7 cubic metres per hour. The stations are designed for installation on all types of river fleet vessels, mixed navigation vessels and on shore facilities. The stations are manufactured in climatic version "U" according to GOST 15150-69 (area with moderate climate, with ambient air temperature from plus 40 degrees C to minus 40 degrees C), placement category "4".

The stations prepare drinking water meeting the requirements of GOST 29183 91 , SanPiN 2.1.4.1074-01 and Unified Sanitary and Epidemiological and Hygienic Requirements for Goods Subject to Sanitary and Epidemiological Surveillance (control) from any river, lake water and other surface and underground sources by its purification, disinfection and deodorisation. The station consists of three main parts: pre-zoning, filtration and UV radiation (hereinafter referred to as UVL).

Specifications

Height

2000 mm

Length

2000 mm

Width

1400 mm

Average treated water capacity

Peak flow rate of treated water

System dry mass

3040 kg

Storage capacity

System power consumption

3 kW

Drainage water flow rate

0...1

Installed electrical capacity of the system

3 kW

Permissible loads on the system enclosure

Life before overhaul

250000

Assigned resource

500000

Ambient temperature during storage and operation

0...45 °C

Peak water flow rate from the storage tank

Pressure in the source water path at the system inlet

1 MPa

Dimensions of treated water tank DxH, mm,

any mm

Dry weight of water treatment unit

3040 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
