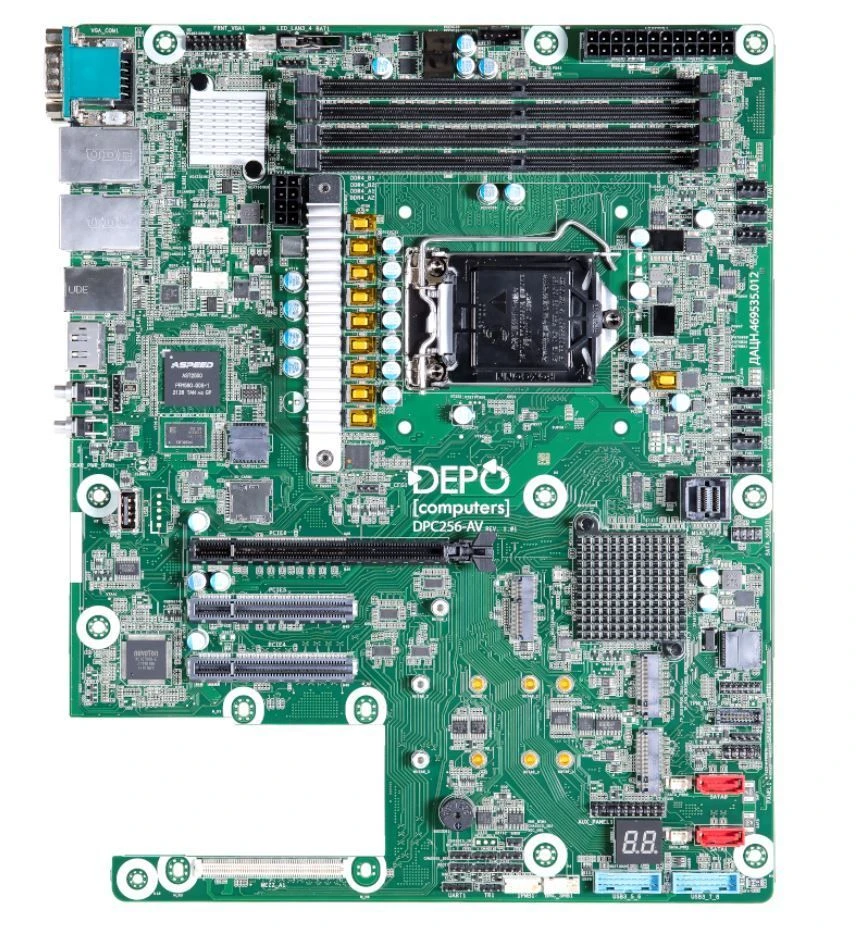

DPC256-AV System Board for Enhanced Server and Data Storage Performance

System board DPC256-AV is designed for use in servers, data storage systems and other electronic devices manufactured by DEPO Electronics Ltd. The board is based on Intel® C256 chipset system logic, equipped with Intel® i350 Gigabit Ethernet controller, two M.2 M-Key SATA/PCIe x4 Gen 4.0 slots and one M.2 M.2 E-Key with WiFi/Bluetooth module support, six SATA connectors with RAID 0/1/5/10 support, a dual port SATA DOM controller and MiniSAS HD connector, DisplayPort 1.4, S-Dub (VGA) video outputs, COM port, four USB 3.2 Gen1 ports on the rear panel, and connectors for additional USB ports. It has expansion slots one PCIe x16 Gen.4, two PCIe x8 Gen.4, and one OCP2.0 (Mezzanine).
