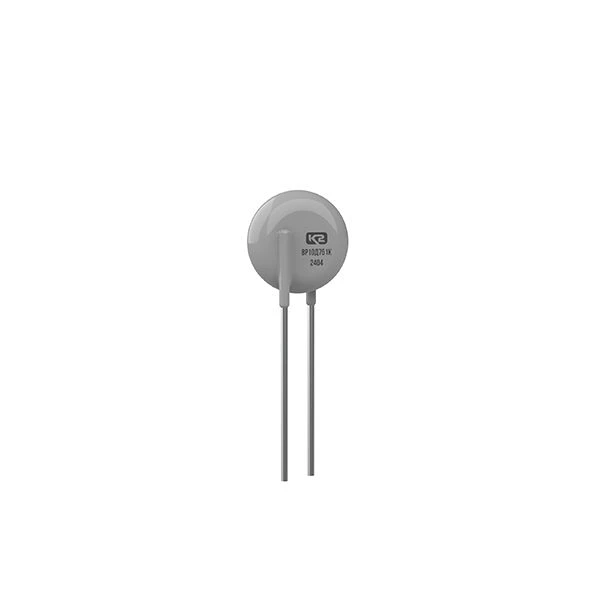

Disk Varistor VR10D751K for Overvoltage Protection in Electrical Systems

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

VR10D751K - varistor of KVS series, 460 V, 2.5 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, not insulated.

Classification rated voltage at 1 mA current

750 V

Maximum AC operating voltage

460 V

Maximum continuous operating voltage

615 V

Permissible amplitude of a single current pulse (8/20 µs)

2500 A

Maximum pulse energy (2 ms)

42.3

Operating temperature range

-60...85 °C

Maximum disk diameter

B1/B8 2100/900 MHz mm

Maximum disk thickness

8 mm
