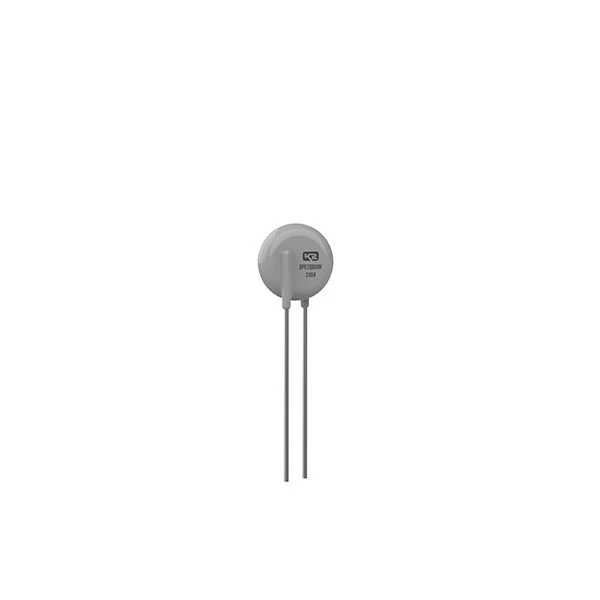

Disk Varistor VR07D680K for Surge Protection and Voltage Regulation

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

VR07D680K - varistor of KVS series, 40 V, 0.25 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, not insulated.

Maximum disk thickness

6.5 mm

Maximum disk diameter

9 mm

Operating temperature range

-60...85 °C

Maximum pulse energy (2 ms)

2.9

Permissible amplitude of a single current pulse (8/20 µs)

250 A

Maximum continuous operating voltage

56 V

Maximum AC operating voltage

40 V

Classification rated voltage at 1 mA current

68 V
