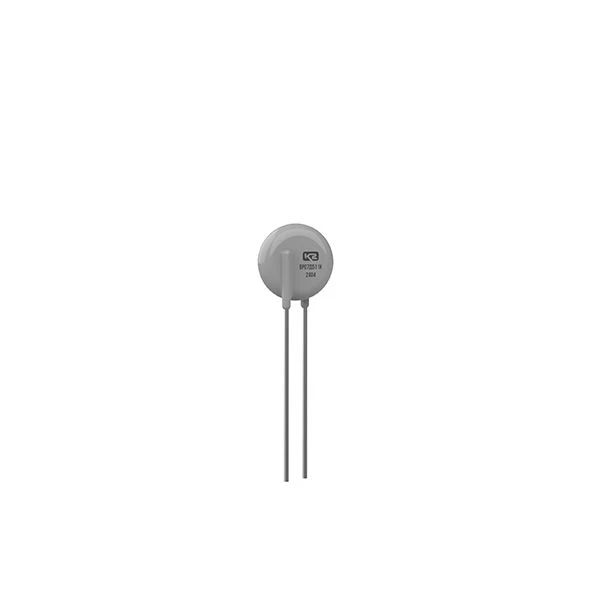

Disk Varistor 320V 1.2kA - VR07D511K for Surge Protection

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

VR07D511K - varistor of KVS series, 320 V, 1.2 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, uninsulated.

Classification rated voltage at 1 mA current

510 V

Maximum AC operating voltage

320 V

Maximum continuous operating voltage

418 V

Permissible amplitude of a single current pulse (8/20 µs)

1200 A

Maximum pulse energy (2 ms)

21.4

Operating temperature range

-60...85 °C

Maximum disk diameter

9 mm

Maximum disk thickness

6.5 mm
