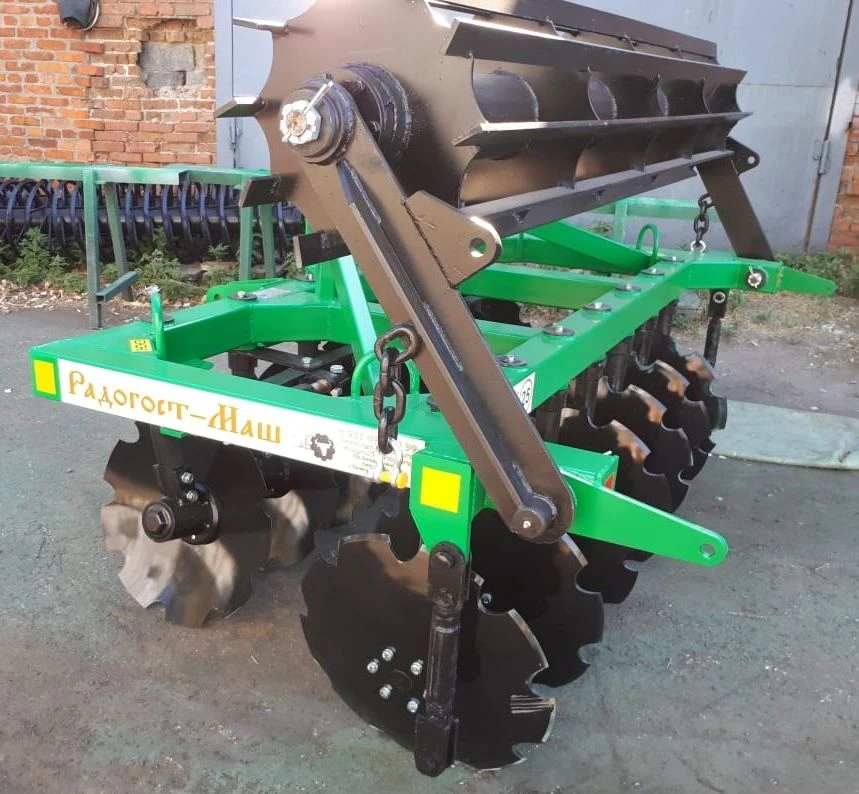

Disc Harrow Mounted 2x2N with Roller Available for Import

Disc Harrow Mounted 2x2N with Roller for Efficient Soil Tillage

Disc Harrows
Manufacturer: RADOGOST-MASH LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Standard equipment: The frame is made of 100x100x5 profile tube, Models for tractors of 2nd and higher traction class are made of 150x100x6 mm pipe. The disc "Romashka" 560x5 mm Lubricated stand 58,5 mm in diameter Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress Supporting spiral stub roller made of 20x20 mm square Support slat roller made of 10x50 mm strip Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing

Optional equipment: Clamp-on cutting unit - the bearing housing is located on the convex (non-working) side of the disc Maintenance-free cutting unit Maintenance-free, long life cutting unit, manufactured by FKL. Spring loaded roller support Smooth discs

Specifications

Type of product according to PP RF 616
Disc harrows
Distance between rows
800 mm
Weight
830 kg
Number of implement rows
2 pcs
Material of working elements
Steel 65G
Material of frame structures
pipe 100x100x5 09g2s
Harrow type
disk drive on a separate rack
Working width
2.2 m
Height
1.5 mm
Width
2.2 mm
Length
2.1 mm
Operating speed
B1/B8 2100/900 MHz
Capacity per hour
2.3
Number of working orans
B1/B8 2100/900 MHz pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
