Digital Panel Meter for Current, Voltage, and Frequency Measurement - Model SHP02

Available for Import

Digital Panel Meter for Current, Voltage, and Frequency Measurement - SHP02

Digital Electrical Instruments

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

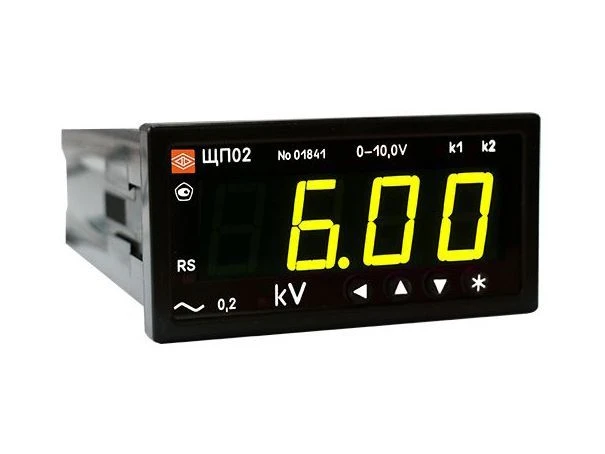

The ShchP02 device is designed to measure and convert the effective value of current, voltage and frequency in single-phase electrical networks and other AC circuits into output unified DC signals and transfer the measured values via serial digital interface RS485. The device can be used in three-phase electric networks for measurement and conversion of parameters of one phase. ShchP02 is included in the State Register of measuring instruments of the Russian Federation No. 68259-17. Interverification interval is 10 years.

Specifications

Overall dimensions, mm

96x48x148 (with rear protective cover), 96x48x121,5 (without cover)

Weight, kg, not more

0,4

LED indication

1 block of seven-segment indicators (4 indicators per block) - for displaying values of voltage or current; sign height: 20 mm

Input signal

100 mV, 150 mV, 200 mV, 250 mV, 500 mV, 1000 mV, 2000 mV; 1 V, 2 V, 5 V, 10 V, 20 V, 50 V, 100 V, 150 V, 200 V, 250 V, 250 V, 380 V, 500 V, 600 V, 750 V; 2 mA, 5 mA, 10 mA, 20 mA, 50 mA, 100 mA, 200 mA, 500 mA, 1000 mA, 2000 mA; 1 A, 2 A, 5 A, 10 A, 20 A;

Registering the maximum measured value

Armoured glass

Measurement time

0,2 ?

Basic error

Current and voltage: ±0.2 %, ±0.5 %; frequency: ±0.01 Hz (15 to 100 Hz), ±0.1 Hz (100 to 850 Hz); analog output: ±0.5 %

Galvanic isolation of input and output circuits, power supply circuits

Armoured glass

Control of power quality parameters

Frequency deviation; duration of voltage dip; depth of voltage dip; duration of voltage interruption; duration of temporary overvoltage; (storing measured parameters of the KE on an external PC via "Configurator" software)

Communication interface RS485

Quantity: 0, 1, 2; Protocols: Modbus RTU; Interface speed: 4800, 9600, 19200, 38400, 57600, 115200 bits/sec.

Analog outputs

Quantity: 0, 1, 2; ranges: 0...5 mA, 4...20 mA, 0...20 mA

Discrete outputs

Quantity: 0, 1, 2; DC voltage 350 V, 200 mA or AC voltage 250 V, 200 mA

Power supply voltage

5VH - (5+4/-0.5) VDC; 12VH - (12+6/-3) VDC; 24VH - (24+12/-6) VDC; 220VU - 85 to 305 VAC 50 Hz or 100 to 430 VDC; 230V - 85 to 305 VAC 50 Hz or 100 to 430 VDC; 230V - 85 to 305 VAC 50 Hz

Power consumption from the power supply circuit, not more

2,5 V?A (for devices with supply voltage 5VN, 12VN, 24VN); 4,0 V?A (for devices with version without RS485 with supply voltage 220VU, 230V); 5,0 V?A (for devices with supply voltage 220VU, 230V)

Reprogramming

Via the "Configurator" program (RS485 interface) or using the buttons on the front panel

Operating temperature range

From -40 to +70 °C (relative humidity 98 % at +35 °C)

Degree of protection

IP54

Inspection interval

10 years

Warranty period of operation

60 mos.

Average service life, at least

20 years

Average MTBF

200000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
